SEN-9428P-24V-RW is an 8-port 10/100/1000 PoE+ downlink and 2-port FX/GbE SFP uplink unmanaged industrial grade switch designed to meet the thermal requirements and environmental conditions of surveillance and WAP railway applications. This PoE+ switch features up to 8-port PSE (power sourcing equipment) ports with plug and plays features to provide power to all the powered devices (PDs) as soon as they are connected. The fiber ports allow noise-free Gigabit Ethernet transmission for fast recovery, reliable and long-distance to other switches or the control center. To keep a stable transmission of video and data the device uses rate limitation and QoS (Quality of Service) and prioritizes industrial applications using protocols like EIP, PROFINET, and GOOSE. The device allows users to change data priority and speed settings pushing the DIP switch.
This switch is built with industrial grade components, enclosed in an IP30 aluminum case with high thermal conductivity to protect the device from tools and hazards. The wide input power range from 24V to 57V enables the device to operate in many substation applications without extra power outlet installation needed. To ensure reliability the redundant power supply and alarm relay contact on the terminal block ensures non-stop operations and issues alerts if power fails. Designed to withstand vibration, shock, free fall, and temperatures ranging from -40℃~75℃ (-40°F~167°F) it suits demanding environments.
High-Power Budget for PoE Devices
Compliant with PoE+ (IEEE 802.3at), the switch supplies 30W per each PoE port, for a 240W total power budget and allows simple “plug and play” PoE for various types of high power-consuming PoE devices.
Robust Electrical and Electromagnetic Safeguard
Engineered to withstand EMI (electromagnetic interference), ESD (Electrostatic discharge), power surge, over-voltage, over current, and reverse polarity.
Power Input
6-pin terminal block with alarm alert in case of power failure.
Fiber Connectivity with Dual SFP Ports
Dual Gigabit SFP ports for expansion of fiber-based daisy chain topology.
Resistant to Extreme Environments
The device is built with Industrial grade components, tested in-house, and certified for reliable operation in harsh environmental conditions by international market safety organizations like CE, FCC, and ROHS. Strong tolerance to extreme temperatures (-40°C~75°C), and resistance to interference makes this device infallible in demanding industrial environments around multiple types of machinery.
Standards
IEEE 802.3
10BASE-T
IEEE 802.3u
100BASE-TX
IEEE 802.3ab
1000BASE-T
IEEE 802.3z
1000BASE-SX/LX
IEEE 802.3
Nway Auto-negotiation
IEEE 802.3x
Flow Control
IEEE 802.3af
Power over Ethernet
IEEE 802.3at
Power over Ethernet Plus
IEEE 802.3az
Energy Efficient Ethernet (EEE)
IEEE 802.1p
Class of Service
Interface
Ports
8 x 10/100/1000BASE-T (PoE RJ45)
2 x FX/GbE SFP Slots

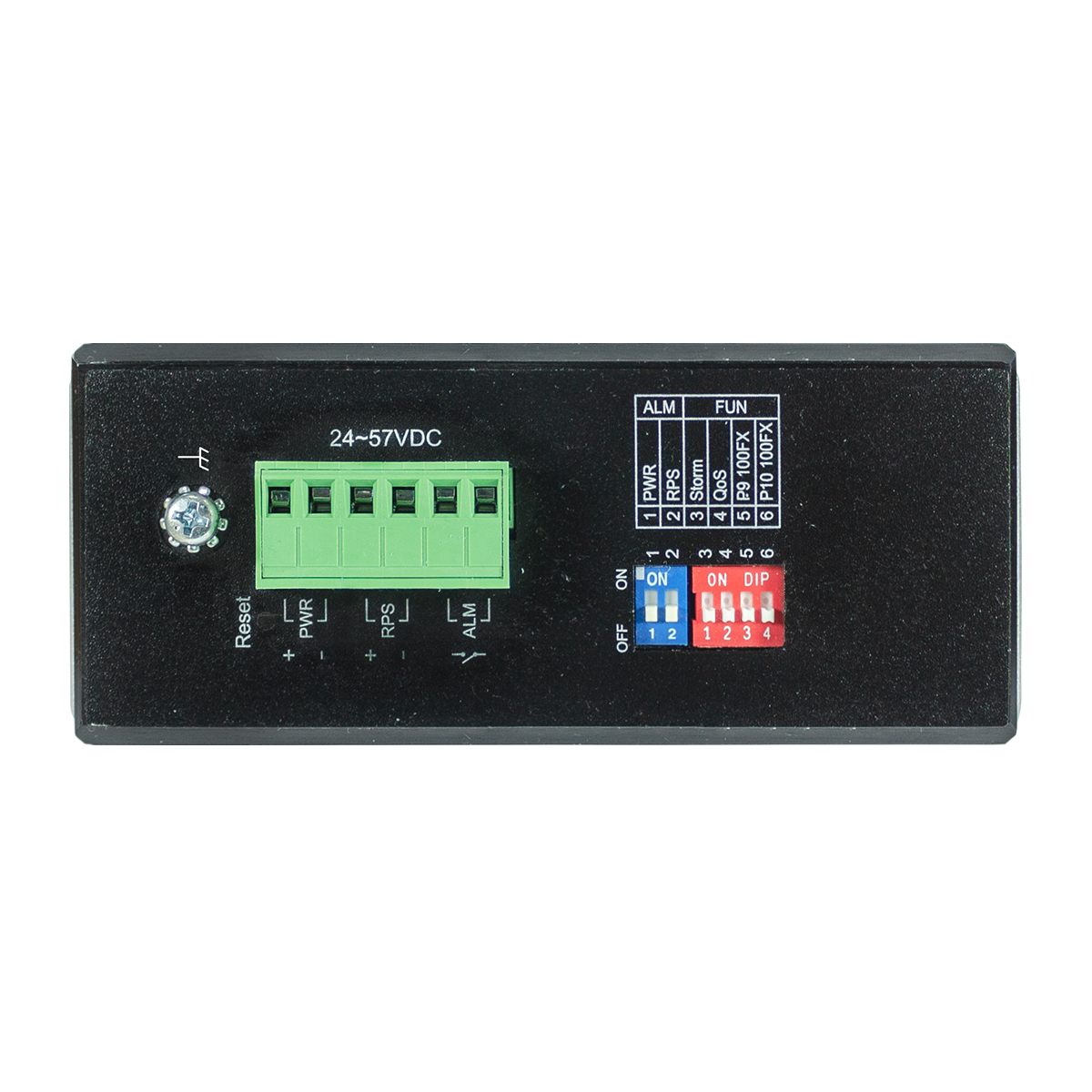

DIP Switch
Power voltage drop alarm setting (PWR & RPS),
Broadcast strom control setting (STORM),
Port-based QoS setting (QoS on P1 & P2),
Fiber port speed setting (100FX on P9 & P10)
LED Panel
PWR, RPS, ALM, SFP, PoE, 1000, LNK/ACT
Power
Input Voltage
Primary input: 24~57V DC
Redundant: 24~57V DC
Connection
Teminal Block
Power Consumption
System: 10W
PoE Power Budget : 124W @ 24V DC
240W @ 48V DC
Alarm Relay
One relay output with current carrying capacity of 1A @ 24V DC
Mechanical and Environment
Housing
Aluminum Case (IP30 protection)
Mounting
DIN-Rail, Wall Mount/Rack-mount
Operating Temperature
-40°C~75°C (-40°F~167°F)
Storage Temperature
-40°C~85°C (-40°F~185°F)
Operating Humidity
5 to 95% RH (non-condensing)
Storage Humidity
5 to 95% RH (non-condensing)
Weight
930 g (2.1 lb)
Dimension (WxHxD)
50 x 160 x 120 mm (1.97 x 6.3 x 4.72 in)
Ordering Information
| Model | Description |
|---|---|
| SEN-9428P-24V-RW | Umanaged 8 x 10/100/1000 PoE+ & 2 x FX/GbE SFP Switch, Railway Approval |
*Specifications subject to change without prior notice.
