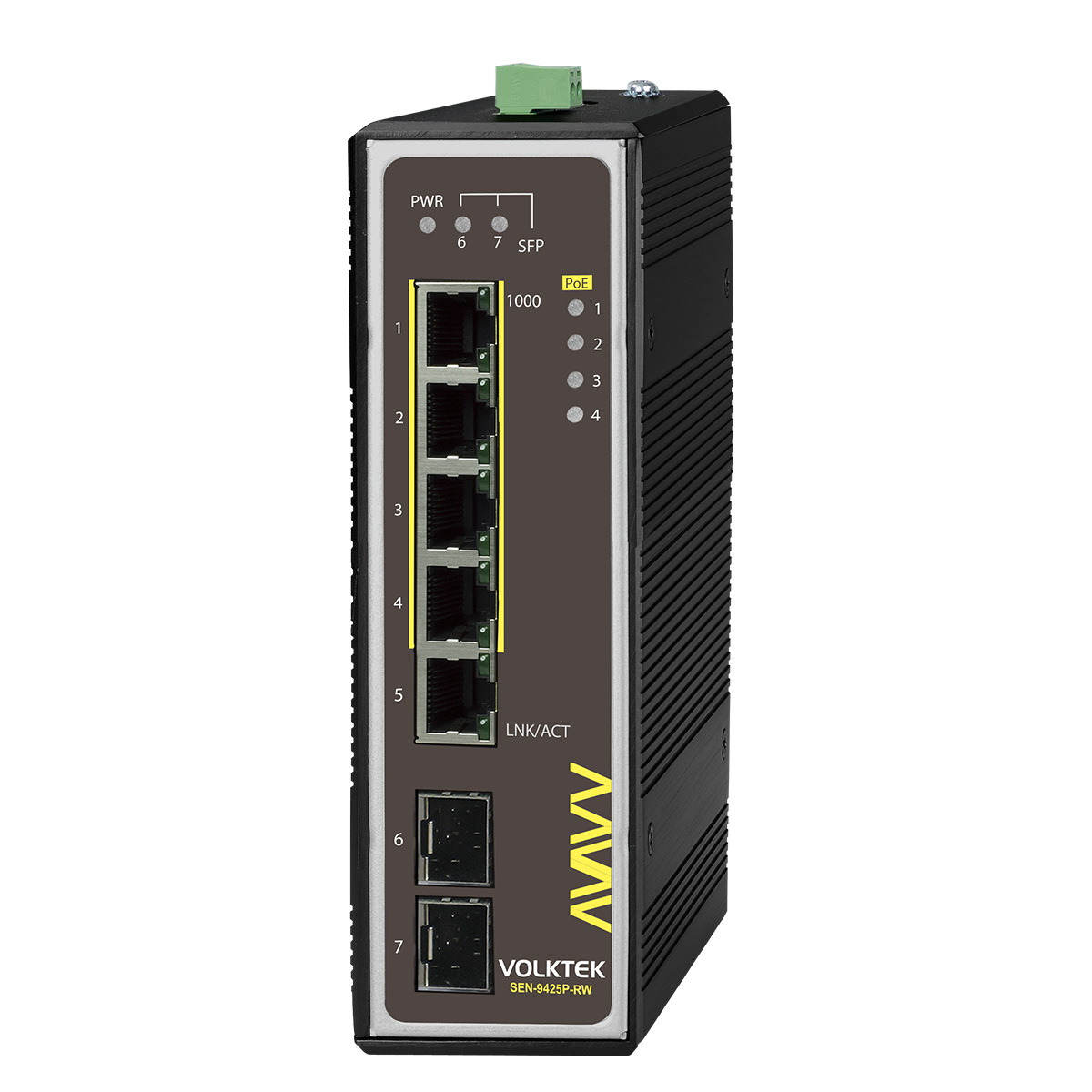

SEN-9425P-24V-RW is a 4-port 10/100/1000 PoE+ downlink, 1-port 10/100/1000 RJ45 downlink, and 2-port GbE SFP uplink unmanaged industrial-grade switch designed to meet the thermal requirements and environmental conditions of surveillance and WAP Railway applications. This PoE+ switch features up to 4-port PSE (power sourcing equipment) ports with plug and play features to provide power to all the powered devices (PDs) as soon as they are connected. The fiber ports allow noise-free Gigabit Ethernet transmission for fast recovery, reliable and long-distance to other switches or the control center. To keep a stable transmission of video and data the device uses rate limitation and QoS (Quality of Service) and prioritizes industrial applications using protocols like EIP, PROFINET, and GOOSE.
This switch is built with industrial-grade components, enclosed in an IP30 aluminum case with high thermal conductivity to protect the device from tools and hazards. The wide input power range from 24V to 57V enables the device to operate in many substation applications without extra power outlet installation needed. The device has two power input methods, a 2-pin Terminal Block and a 4 pin mini-DIN that attaches firmly to the device avoiding it from disconnecting during strong vibrations. Designed to withstand vibration, shock, free fall, and temperatures ranging from -40℃~75℃ (-40°F~167°F) it suits heavy industrial environments.
High-Power Budget for PoE Devices
Compliant with PoE+ (IEEE 802.3at), the switch supplies 30W per each PoE port, for a 120W total power budget and allows simple “plug and play” PoE for various types of high power-consuming PoE devices.
Firm Power Connection and DIN-Rail mountable (AC to DC)
DIN-Rail mountable power adaptor; 4 pin mini-DIN that attaches firmly to the device avoiding it from disconnecting during strong vibrations
Innovative Power Boost Technology
24 to 57V DC power boosting with DC-to-DC converter for high-power requiring PoE/PoE+ devices.
Resistant to Extreme Environments
The device is built with Industrial grade components, tested in-house, and certified for reliable operation in harsh environmental conditions by international market safety organizations like CE, FCC, and ROHS. Strong tolerance to extreme temperatures (-40°C~75°C), and resistance to interference makes this device infallible in demanding industrial environments around multiple types of machinery.
Standards
IEEE 802.3
10BASE-T
IEEE 802.3u
100BASE-TX
IEEE 802.3ab
1000BASE-T
IEEE 802.3z
1000BASE-SX/LX
IEEE 802.3
Nway Auto-negotiation
IEEE 802.3x
Flow Control
IEEE 802.3af
Power over Ethernet
IEEE 802.3at
Power over Ethernet Plus
IEEE 802.3az
Energy Efficient Ethernet (EEE)
IEEE 802.1p
Class of Service
Interface
Ports
4 x 10/100/1000BASE-T (PoE RJ45)
1 x 10/100/1000BASE-T (RJ45)
2 x GbE SFP Slots
LED Panel
PWR, SFP, PoE, 1000, LNK/ACT
Power
Input Voltage
24~57V DC
Connection
Teminal Block
Power Consumption
System:14W
PoE Power Budget: 120W
Power Input Polarity Protection
Present
Mechanical and Environment
Housing
Aluminum Case (IP30 protection)
Mounting
DIN-Rail, Wall Mount/Rack-mount
Operating Temperature
-40°C~75°C (-40°F~167°F)
Storage Temperature
-40°C~85°C (-40°F~185°F)
Operating Humidity
5 to 95% RH (non-condensing)
Storage Humidity
5 to 95% RH (non-condensing)
Weight
869 g (1.92 lb)
Dimension (WxHxD)
50 x 160 x 120 mm (1.97 x 6.3 x 4.72 in)
Ordering Information
| Model | Description |
|---|---|
| SEN-9425P-24V-RW | Unmanaged 4 x 10/100/1000 PoE+ & 1 x 10/100/1000 RJ45 & 2 x GbE SFP Switch, Railway Approval |
*Specifications subject to change without prior notice.
