* The highest degree of temperature operation certified by UL is -40˚C~70˚C (-40°F~158°F).
IPI-432P-90-I (90W) is a single port PoE++ industrial power injector that delivers data and power to powered devices (PDs) via Cat-5e or Cat-6 Ethernet cables. It allows data transmission at multiple rates 10/100/1000Mbps and power delivery up to 90 Watts. Suitable for the revolutionary PoE-based lighting system that creates a new breed of smart buildings where everything is connected to a vast Internet of Things (IoT). The IPI-432P-90-I is fan-less and could be deployed in the ceiling or outdoor cabinets for smart lighting or other network communication devices. It has LED signals to inform the amount of power used and alerts users when the power has surpassed the safe limits. Designed to work in industrial demanding environments, and enclosed in an IP30 aluminum case with high thermal conductivity to protect the device from tools and hazards. It operates between a wide temperature of -40℃~70℃ (-40°F~158°F). To ensure the connected devices operate reliably, it uses a Redundant Power Supply system and a Relay Alarm to issue alerts if power fails.
Easy and Quick Installation / Plug and Play
MDI/MDI-X feature enables the injector and PoE compatible devices to interact and transmit the right amount of energy needed for its operation.
Power Usage LED indicators
The injector's interface makes the amount of power consumed easily identifiable to quickly reboot the PD if needed or if the power exceeds the safe levels. The power usage LED indicators light up according to the amount of power consumed (15W, 30W and 60W).
Compact Size and Hardened Components
It's compact size, lightweight and industrial-grade design give users the freedom to locate the injector in different areas for devices of different functions.
Standards
IEEE 802.3af
PoE
IEEE 802.3at
PoE+
IEEE 802.3bt
4PPoE, 4-pair PoE
Interface
Ports
1 x 10/100/1000 Base-T RJ45 port
1 x 10/100/1000 Base-T PSE port (90W)

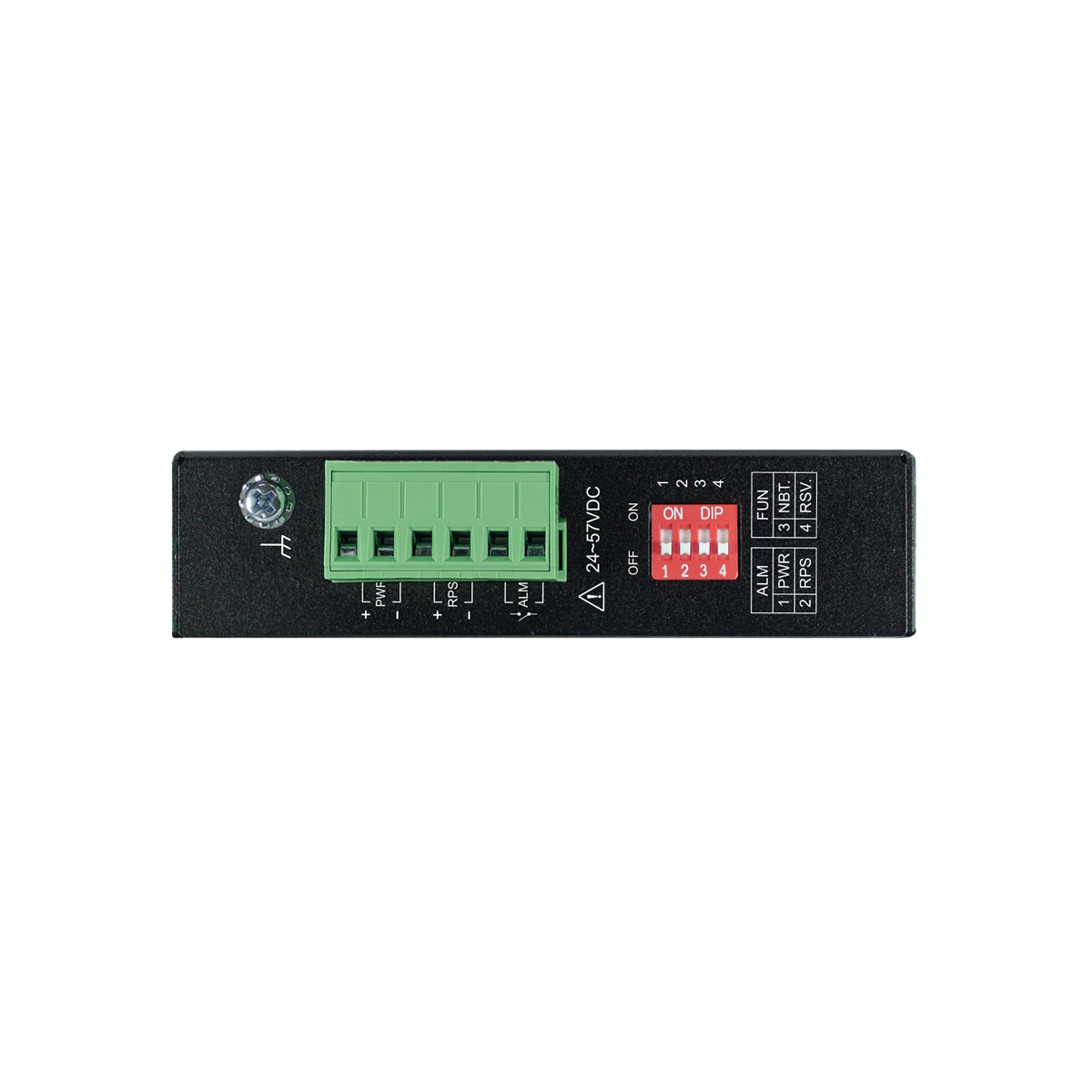

DIP Switch
PWR, RPS, NBT, RSV
LED Panel
PWR, RPS, ALM, PoE, NBT, 93~96W
PoE Usage (15,30,60,90)
Power
Power Input
Dual 24~57V DC, Terminal Block
Power Consumption
9 Watt (System Only)
PoE Mode
IEEE 802.3af (PoE)
IEEE 802.3at (PoE+)
IEEE 802.3bt (4PPoE)
IEEE 802.3bt (Type 4)
PoE Type
MidSpan
PoE Budget
90W
Alarm Relay
One relay output with current carrying capacity of 1A@ 24V DC
Mechanical and Environment
Housing
Aluminum (IP30 Protection)
Mounting
DIN Rail
Operating Temperature
-40°C~75°C (-40°F~167°F)
Storage Temperature
-40°C~85°C (-40°F~185°F)
Operating Humidity
5~95% RH (non-condensing)
Storage Humidity
5~95% RH (non-condensing)
Weight
385 g (0.85 lb)
Dimension (WxHxD)
25 x 116 x 100 mm (0.98 x 4.57 x 3.93 in)
Ordering Information
| Model | Description |
|---|---|
| IPI-432P-90-I | Industrial Gigabit 90W PoE Injector |
*Specifications subject to change without prior notice.
