The IPS-342P is a rugged unmanaged industrial PoE splitter designed to enhance the performance of high-power devices while simplifying network infrastructure. Featuring one 10/100/1000 btPoE port and one 10/100/1000 RJ45 port, it efficiently converts high-power PoE input into 24VDC outputs, making it ideal for diverse applications.
Built for harsh industrial environments, the IPS-342P operates in extreme temperatures ranging from -40 to 75ºC, ensuring stable and reliable performance in mission-critical applications. With plug-and-play simplicity, it eliminates the need for additional power sources, reducing cabling complexity, installation costs, and maintenance efforts.
Designed for IP security cameras, wireless access points, LED lighting systems, building automation, and industrial control systems, the IPS-342P is the perfect solution to maximize power efficiency, enhance network stability, and streamline industrial connectivity.
High Powerful Delivery
Meets the growing power needs of high-performance devices with high power delivery on the PSE side, making it ideal for supporting the latest market advancements.
Versatility and Flexibility
Offers a combination of 1x btPoE port for high-power devices and 1x RJ45 port for standard Ethernet connections. Provides two power outputs with flexible 12V/24VDC interchangeability, adapting to diverse power requirements.
Enhanced Compatibility
Ensures seamless integration with a wide range of PoE-enabled devices thanks to IEEE 802.3bt compliance, making it a reliable choice for various industrial applications.
Reliable Protection and Isolation
Safeguards your equipment with built-in Short Circuit Protection (SCP), Overload Protection (OLP), and power isolation features, ensuring maximum operational safety and longevity.
Convenient Installation

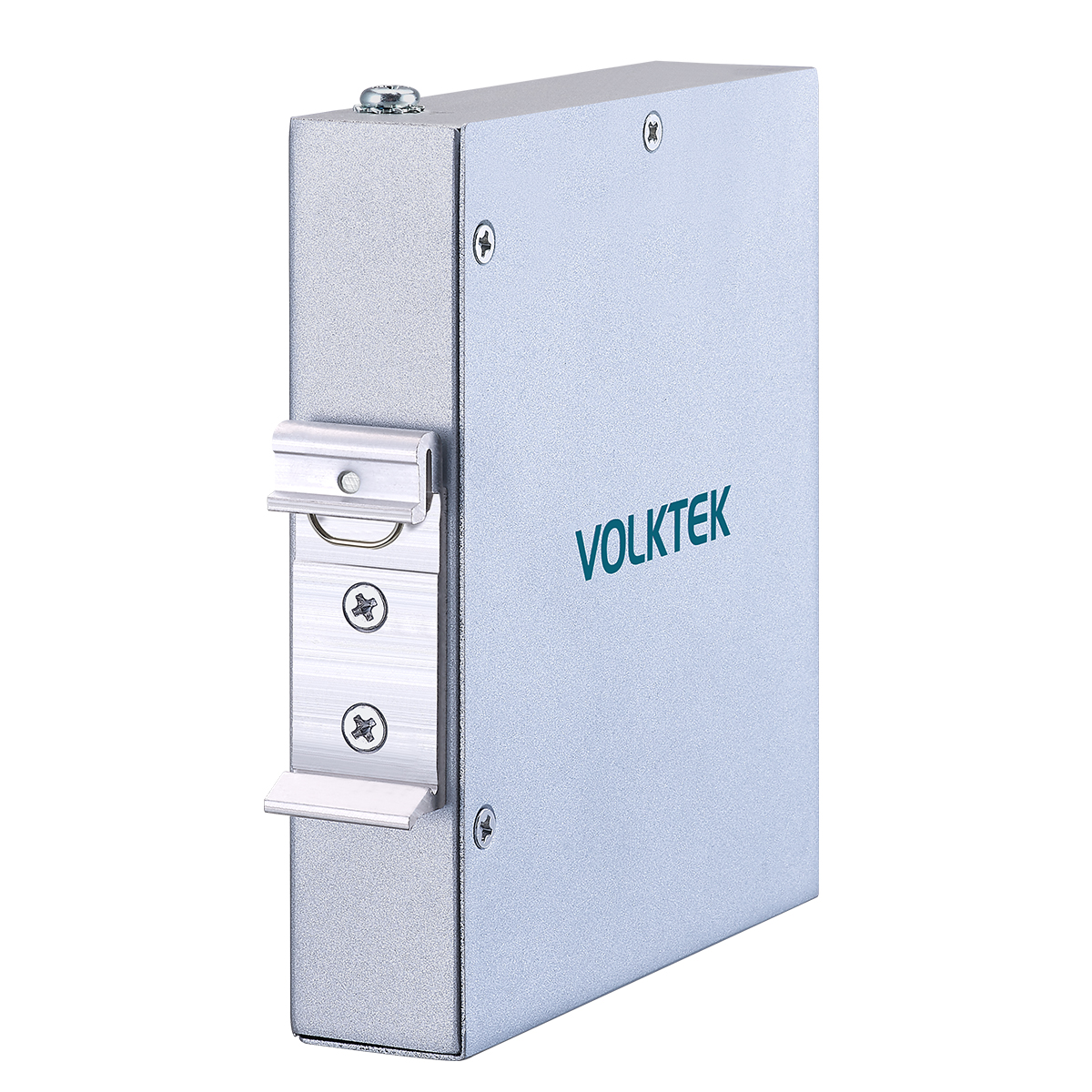

Designed for easy deployment with support for both DIN-Rail and optional Wall-mount installation, offering flexibility for various industrial environments.
Powered by ADI
Leverages the trusted expertise of Analog Devices to deliver exceptional performance and reliability, ensuring stable and long-term operation.
Standards
IEEE 802.3
10BASE-T
IEEE 802.3u
100BASE-TX
IEEE 802.3ab
1000BASE-T
IEEE 802.3af
Power over Ethernet (PoE)
IEEE 802.3at
Power over Ethernet (PoE+)
IEEE 802.3bt
Type 3 / Type 4, 4PPoE, PoE++
Interface
Ports
1 x 10/100/1000BASE-T btPoE
1 x 10/100/1000BASE-T RJ45
DIP Switch
DC Output (12VDC, 24VDC), DC ON/OFF
LED
System: PWR (G), V1 (A/G), V2 (A/G)
Interface: ~30W (G), ~60 (G), ~90W (G), 1000 (G), LNK/ACT (G)
Power
Input Voltage
Power input via PoE Port
Power Consumption
6W (System Only)
Mechanical and Environment
Electromagnetic Compatibility
Metal ( IP30 Protection )
Operating Temperature
-40~75ºC
Storage Temperature
-40~85ºC
Operating Humidity
5%~95%
Storage Humidity
5%~95%
Weight
262.2 g ( 0.64 lb)
Dimension (WxHxD)
25 x 116 x 100 mm (0.98 x 4.57 x 3.93 inch)
Ordering Information
| Model | Description |
|---|---|
| IPS-342P | 1x 10/100/1000 btPoE & 1x 10/100/1000 RJ45 Industrial PoE Splitter |
*Specifications subject to change without prior notice.
