* The highest degree of temperature operation certified by UL is -40˚C~75˚C (-40°F~167°F).
The 7013-16T-1 Industrial Ethernet Switch is a versatile and resilient networking device, equipped with sixteen 10/100Base-TX ports to support high-bandwidth applications in industrial settings. It's designed with a 16KB jumbo frame for efficient data packet processing and is built to withstand extreme temperatures from -40 to 75°C, thanks to its IP40-rated aluminum casing.
This unmanaged switch features Auto-negotiation technology for hassle-free network setup. It offers full duplex capabilities with up to 200 Mbps throughput per port for rapid file transfers. Its compact design and silent operation (fanless) make it suitable for any workspace, while MDI/MDIX auto-detection ensures easy connectivity with any cable type.

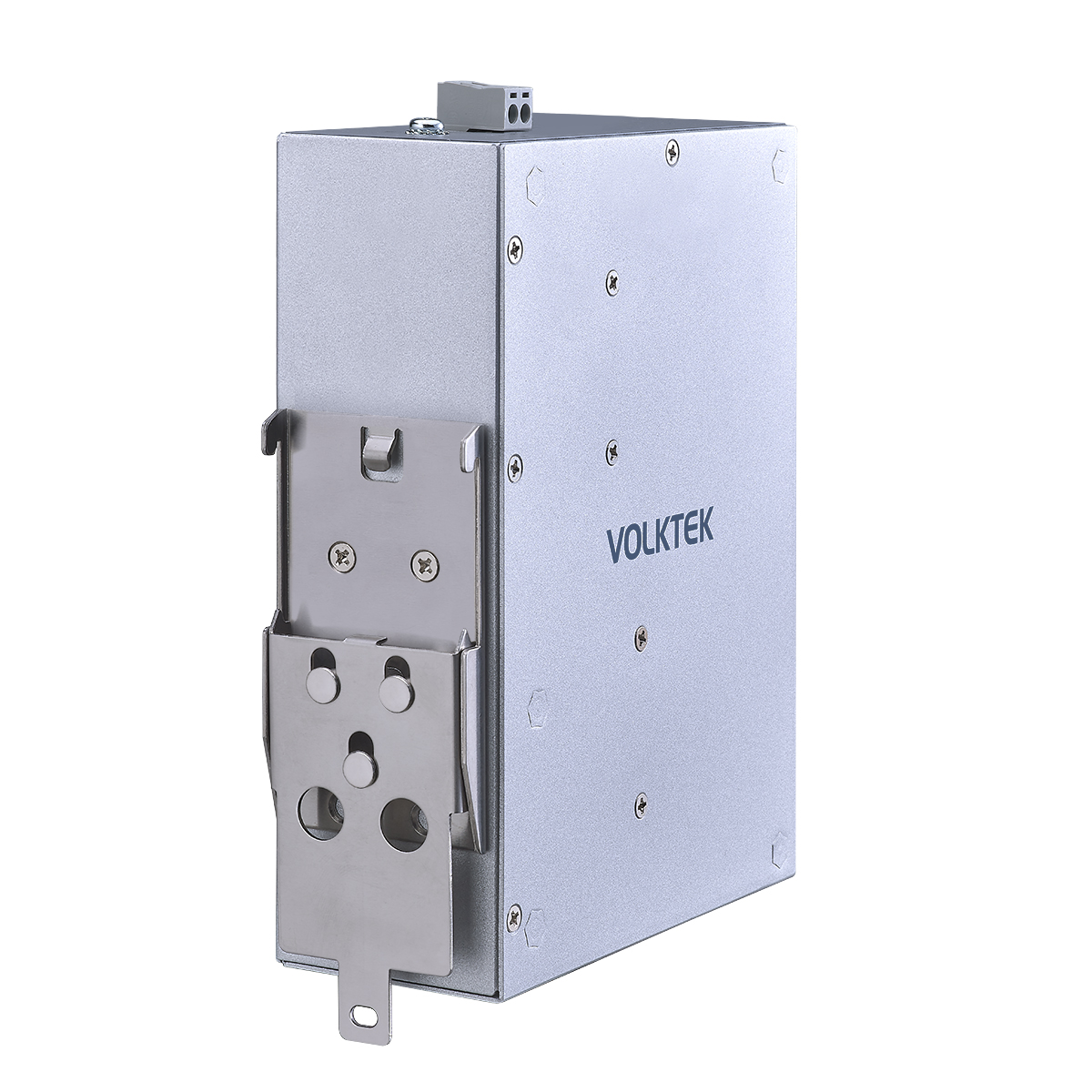

The 7013-16T-1's LED indicators provide convenient monitoring, and its Din-Rail mounting compatibility allows for secure installation in various environments. With 12/24/48 VDC power inputs and advanced EMI/EMC protection, the switch is reliable and safe for all industrial applications. It also comes with a 5-year warranty and has passed a 100% burn-in test to ensure durability and consistent performance. This switch is an ideal solution for expanding industrial networks, offering robustness and ease of use.
Ruggedized Components Designed for Harsh Industrial Environments
Built with industrial-grade components, good thermal conductivity, and enclosed in an IP40 metal case, this Ethernet switch is resistant to extreme environments, vibration, EMI (electromagnetic interference), ESD (electrostatic discharge), power surge, over-voltage, over-current, and reverse polarity. It withstands operation at extreme temperatures between -40°C~75°C (-40°F~167°F). It follows international safety standards like CE, FCC, and ROHS for safe operation
Quick and Convenient Installation with Auto-negotiation

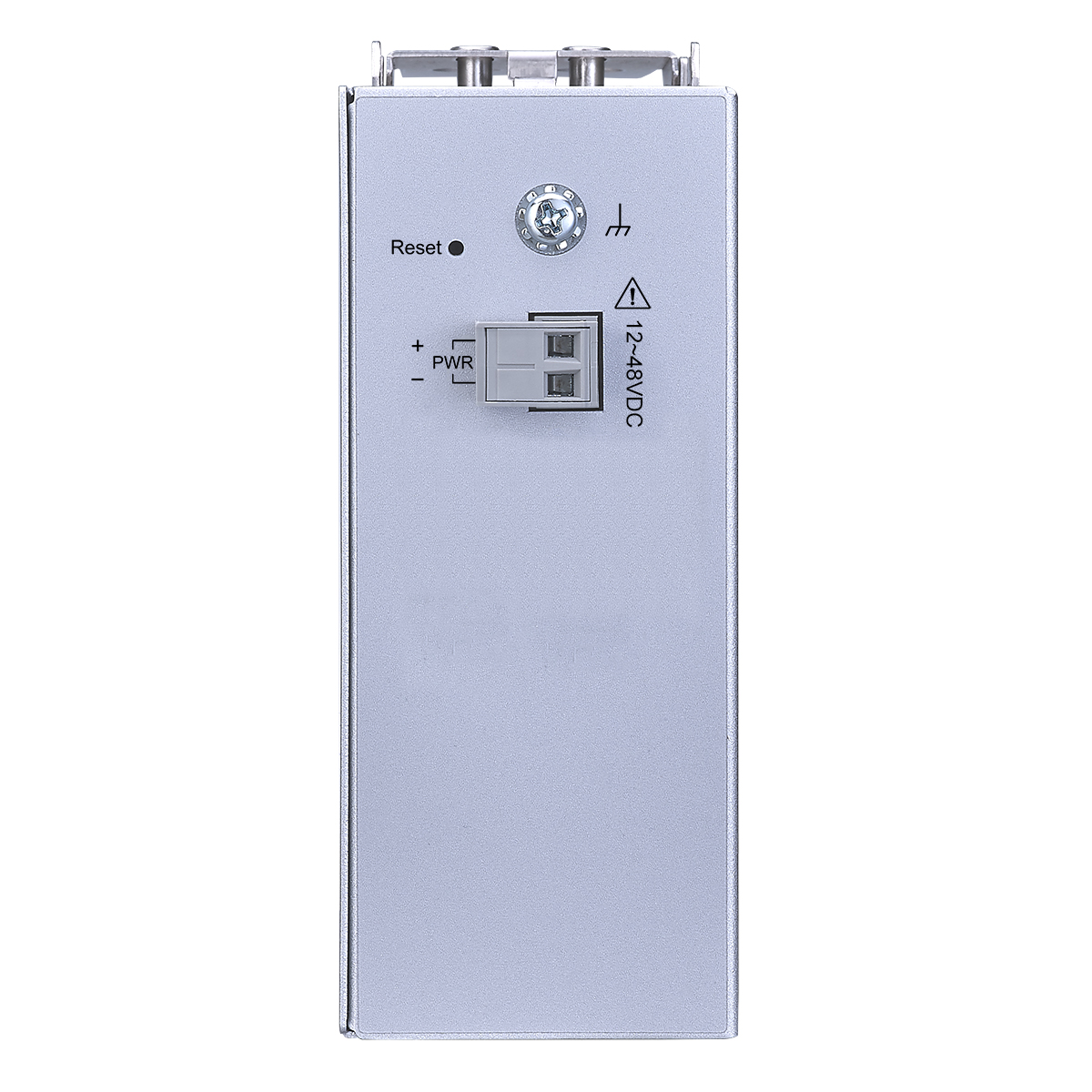

7013-16T-I responds instantly when it is connected and makes installation convenient. One 12~48VDC power supply connects to the 2-pin terminal block for power. The 10/100 Mbps ports use auto MDI/MDI-X connection for auto-negotiation to work as soon as connected to other network devices at the required speed without extra software installation. The LED light displays when the device is on. The compact and port-dense design allows it to fit at different locations so that many devices can operate in the same network.
Intelligent VLAN Data Forwarding
The 7013-16T-I is aware enough to read the source and destination of VLAN-tagged data packets. This unmanaged switch delivers VLAN packets without changing or dropping them, assuring operational data in industrial fields is delivered safely across devices
High Port Density for Complex Applications
This high-port density switch has 16 10/100 Mbps Ethernet ports to connect many devices, such as robots, control devices, and peripherals, for large and complex applications and automated processes. Each port adapts to the speed required by the device connected to this networking switch.
Traffic Control Mechanisms to Optimize Bandwidth Usage
Traffic control mechanisms regulate excessive traffic to avoid delay, data loss, and connection issues between devices. This unmanaged switch uses Flow Control to prevent devices from overwhelming each other during data exchange, keeping devices working within their capacity.
Standards
IEEE 802.3
10BASE-T
IEEE 802.3u
100BASE-TX
IEEE 802.3
Nway Auto-negotiation
IEEE 802.3x
Flow Control
Interface
Ports
16 x 10/100BASE-TX Port
LED Panel
PWR, 100, LNK/ACT
Power
Input Voltage
12~48VDC
Power Consumption
System 15W
Mechanical and Environment
Housing
Metal (IP40 protection)
Operating Temperature
-40°C~75°C
Storage Temperature
-40°C~85°C
Operating Humidity
5% to 95%
Storage Humidity
5% to 95%
Weight
900g (2.18 lb)
Dimension (WxHxD)
50 x 163.4 x 120mm (1.97 x 6.43 x 4.72in)
.png)
Ordering Information
| Model | Description |
|---|---|
| Woodpecker 7013-16T-I | Unmanaged 16 x 10/100 RJ45 Industrial Switch |
*Specifications subject to change without prior notice.
