IRF-629 is a RS-422/485 to Fiber media converter. The device uses LED signaling to inform users of its transmission activity. Ideal for manufacturing floors with legacy devices that use serial port connectivity. The device is available in single- and multi-mode interface with data transmission delivery at distances of 2km/30km/60km/100km depending on request. This media converter is available with ST and SC connectors to add flexibility. This media converter operates between temperatures of 0°C~50°C (32°F~122°F). The device has a standard size to fit on an in-rack solution with multiple media converters.
Extendable Optical Connectivity
Extendable up to 2 km for multimode and 120 km for single-mode fiber.
Space-saving Design
Compact and DIN-RAIL mountable.

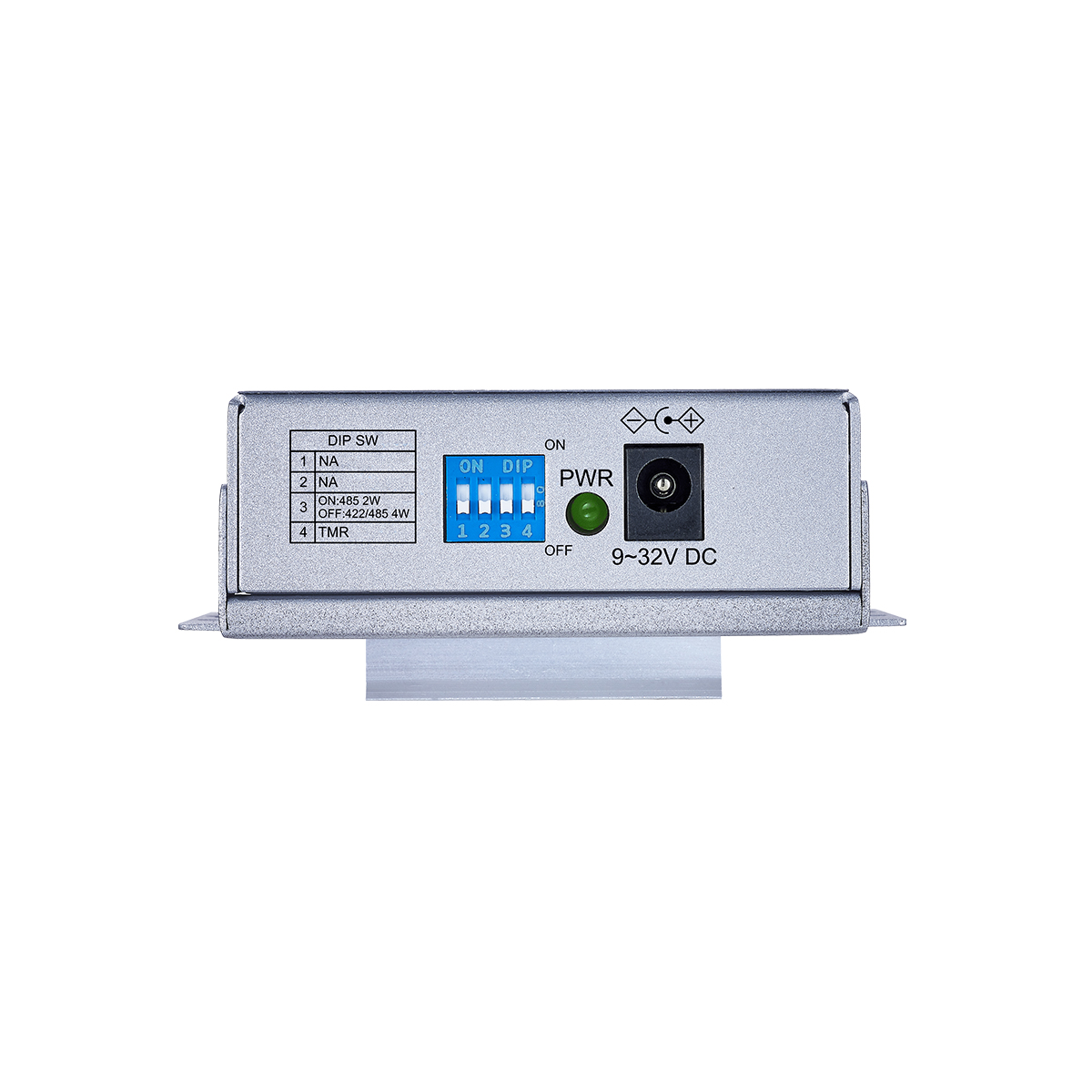

Effective Control through DIP Switches
Easy-to-operate DIP switches for selection of 4-wire or 2-wire data transmission using RS 422/485 without any changes in network setup.
User-Friendly Monitoring
LED status indicators for monitoring power supply and fiber connectivity.
Standards
Serial Standards
RS-232
Interface
Ports

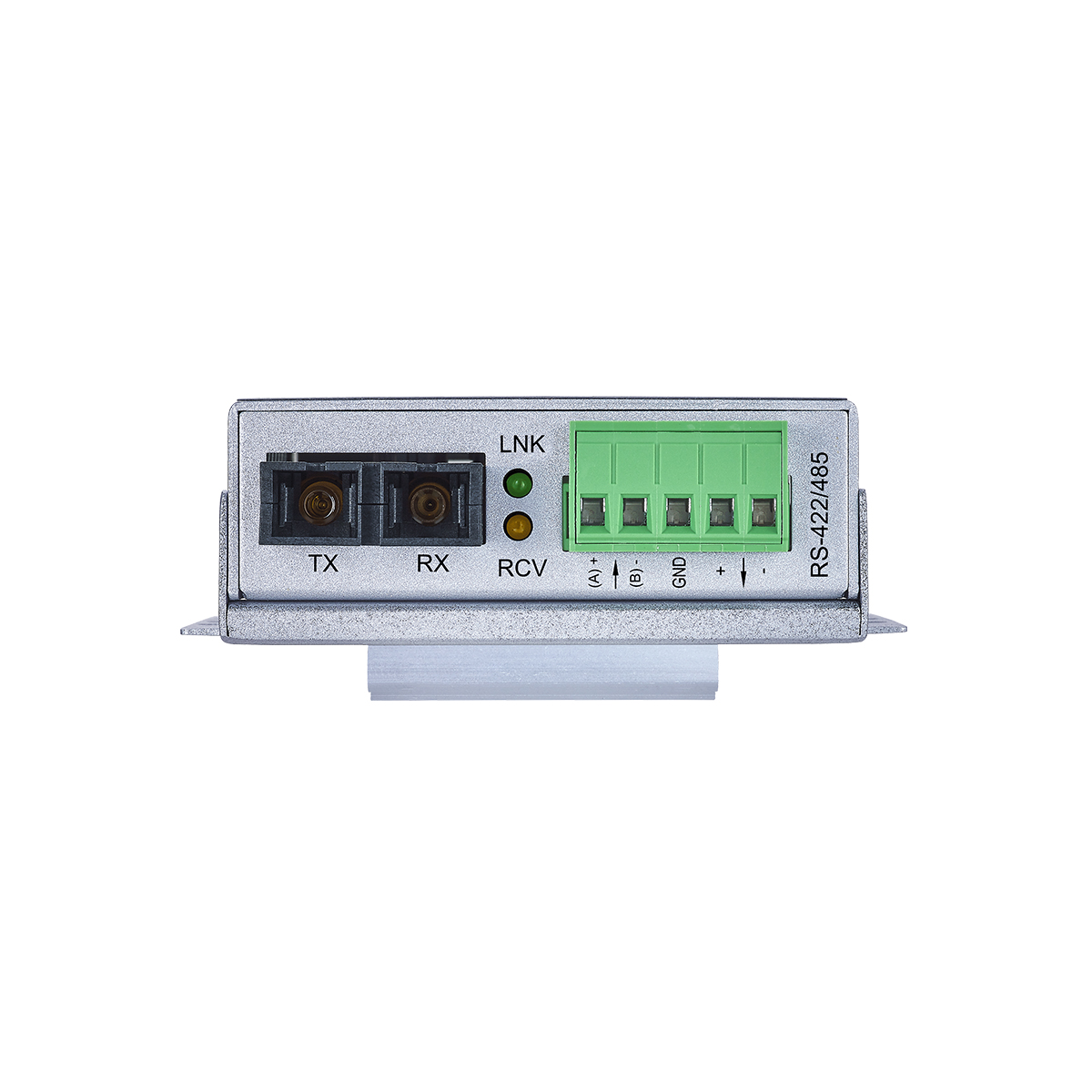

1 x Serial RS-422/485 (Terminal Block)
1 x Fiber (ST/SC; Multi-mode / Single-mode)
LED Panel
PWR, LNK, RCV
DIP
DIP1: N/A
DIP2: N/A
DIP3: Enable / disable 2-wire/4-wire mode
DIP4: Enable / disable terminator (TMR)
Power
Input Voltage
9~32V DC
Power consumption
2.4w
Mechanical and Environment
Housing
Aluminum
Mounting

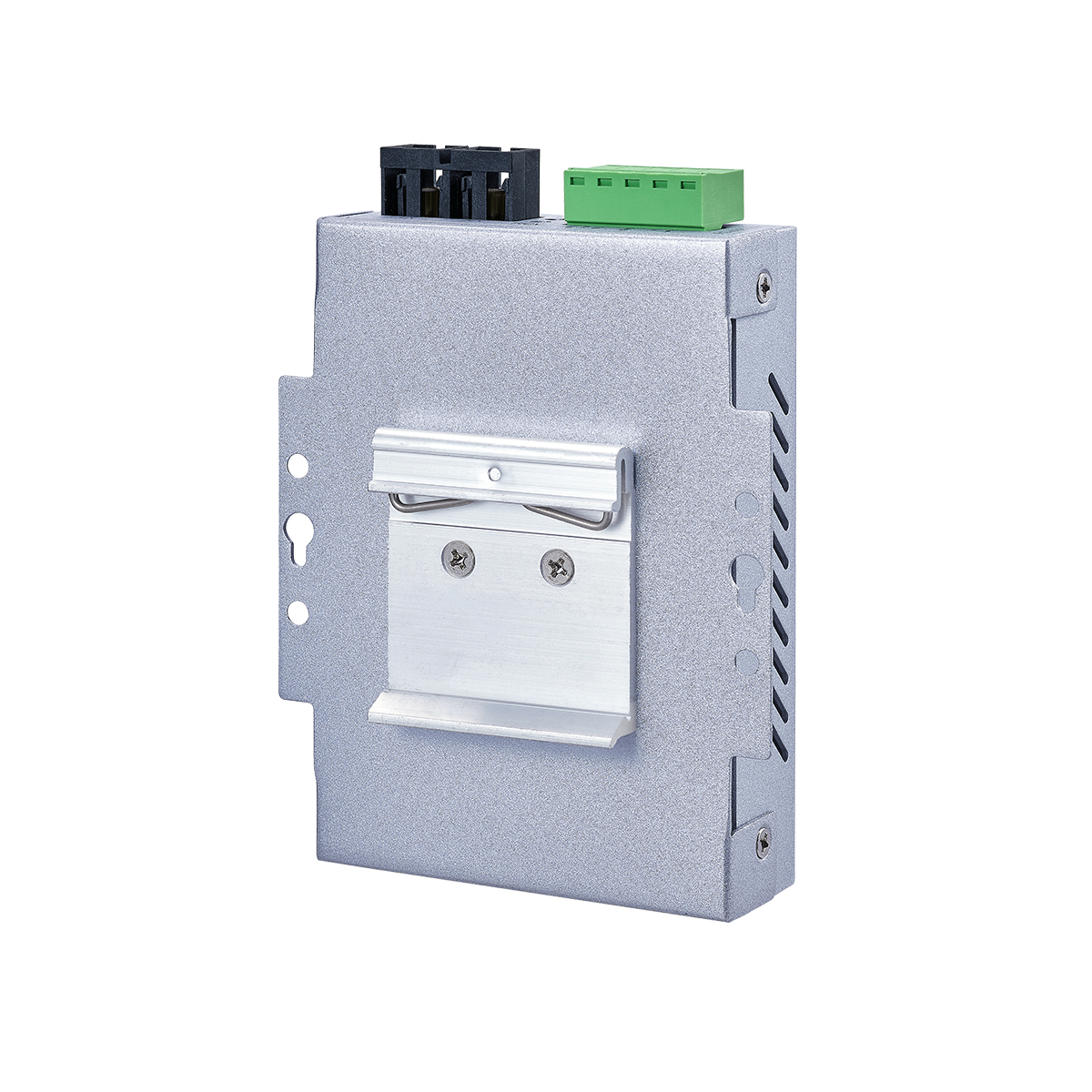

Wall-Mount, DIN-Rail (Optional)
Operating Temperature
0ºC~50ºC (32°F~122°F)
Storage Temperature
-20ºC~80ºC (-4ºF~176ºF)
Operating Humidity
5 to 95% RH (non-condensing)
Storage Humidity
5 to 95% RH (non-condensing)
Weight
280 g (0.62 lb)
Dimension (D x W x H)
109.2 x 90 x 31.5 mm (4.3 x 3.54 x 1.24 in)
Ordering Information
| Model | Description |
|---|---|
| IRF-629MC | RS-422/485 to Multi-mode Fiber Converter (ST Connector, 2km) |
| IRF-629MT | RS-422/485 to Multi-mode Fiber Converter ( MT Connector, 2km) |
| IRF-629SC | RS-422/485 to Single-mode Fiber Converter (SC Connector, 30km) |
*Specifications subject to change without prior notice.
| File Name | Release Date | Download |
|---|---|---|
| IRF-629 Datasheet | 0000-00-00 |
|
