IEN-9428-RW is an 8-port 10/100/1000 RJ45 downlink and 2-port FX/GbE SFP uplink unmanaged industrial-grade switch designed to meet the thermal requirements and environmental conditions of railway applications. The downlink ports connect to industrial devices and controllers. The fiber ports allow noise-free Gigabit Ethernet transmission for fast recovery, reliable and long-distance to other switches or the control center.
To keep a stable transmission of video and data the device uses rate limitation and QoS (Quality of Service) and prioritizes industrial applications using protocols like EIP, PROFINET, and GOOSE. The device allows users to change data priority and speed settings pushing the DIP switch.
This switch is built with industrial-grade components, enclosed in an IP30 aluminum case with high thermal conductivity to protect the device from tools and hazards. To ensure reliability the redundant power supply and alarm relay contact on the terminal block ensures non-stop operations and issues alerts if power fails. Designed to withstand vibration, shock, free fall, and temperatures ranging from -40℃~75℃ (-40°F~167°F) it suits places like tunnels.
Robust Electrical and Electromagnetic Safeguard
Engineered to withstand EMI (electromagnetic interference), ESD (Electrostatic discharge), power surge, over voltage, over current, and reverse polarity.
Redundant Power System
To guarantee power runs continuously the switch is designed to be simultaneously connected to two power supplies and an alarm through a standard industrial terminal block. If one power supply stops working the switch will start feeding its power on the alternative power supply and the alarm will go off to notify technicians about the event.
Eco-friendly Green Ethernet Technology
IEEE 802.3az Energy Efficient Ethernet (EEE) compliant with Green Ethernet technology capable of automatic adjustment of power consumption.
Standards
IEEE 802.3
10BASE-T
IEEE 802.3u
100BASE-TX
IEEE 802.3ab
1000BASE-T
IEEE 802.3z
1000BASE-SX/LX
IEEE 802.3
Nway Auto-negotiation
IEEE 802.3x
Flow Control
IEEE 802.1p
Class of Service
Interface
Ports
8 x 10/100/1000BASE-T (RJ45)
2 x 100FX/GbE SFP Slots

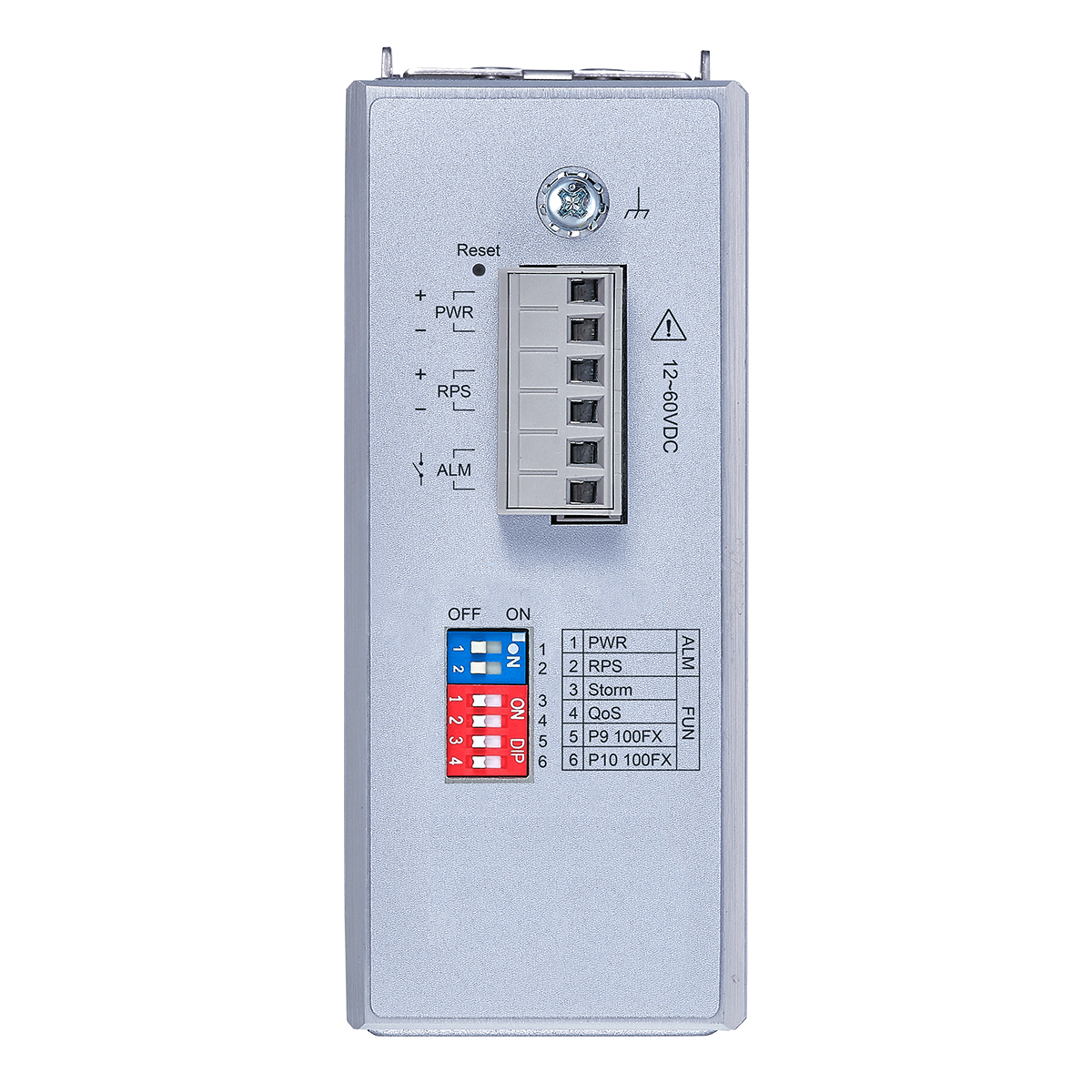

DIP Switch
Power voltage drop alarm setting (PWR & RPS),
Broadcast storm control setting (STORM),
Port-based QoS setting (QoS on P1 & P2),
Fiber port speed setting (100FX on P9 & P10)
LED Panel
PWR, RPS, ALM, SFP, 1000, LNK/ACT
Power
Input Voltage
12V~60VDC
Power Consumption
System: 13W
Connection
Terminal Block
Alarm Relay
One relay output with current carrying capacity of 1 A @ 24V DC
Mechanical and Environment
Housing
Aluminum Case (IP30 protection)

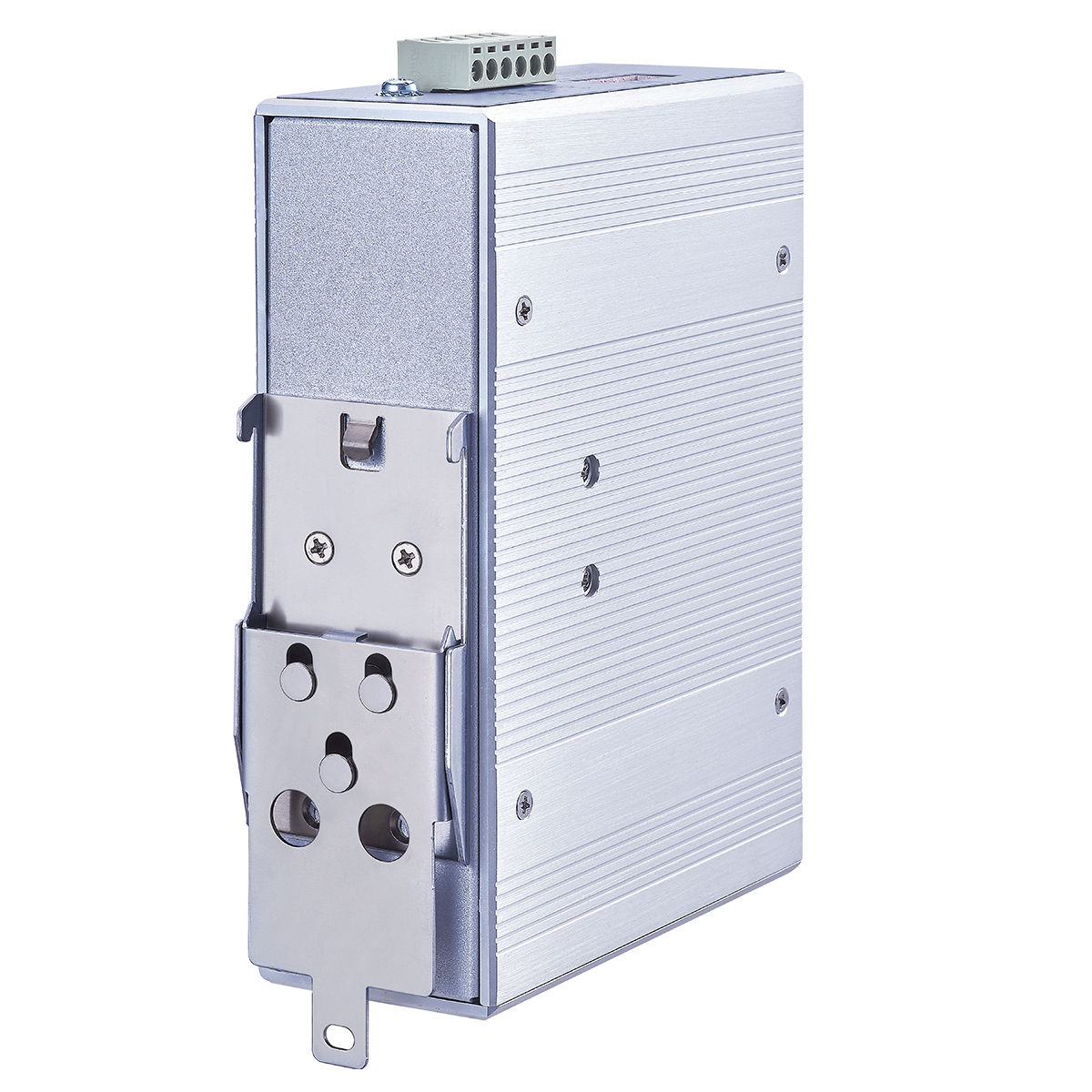

Mounting Kit
DIN-Rail, Rack-mount
Operating Temperature
-40°C~75°C (-40°F~167°F)
Storage Temperature
-40°C~85°C (-40°F~185°F)
Operating Humidity
5 to 95% RH (non-condensing)
Storage Humidity
5 to 95% RH (non-condensing)
Weight
930 g (2.0 lb)
Dimension (WxHxD)
50 x 161.5 x 119.9 mm (1.97 x 6.36 x 4.72 in)
Ordering Information
| Model | Description |
|---|---|
| IEN-9428-RW | Unmanaged 8 x 10/100/1000 RJ45 & 2 x FX/GbE SFP Industrial Switch, Railway Approval |
*Specifications subject to change without prior notice.
| File Name | Release Date | Download |
|---|---|---|
| IEN-9428-RW | 2025-01-15 |
|
