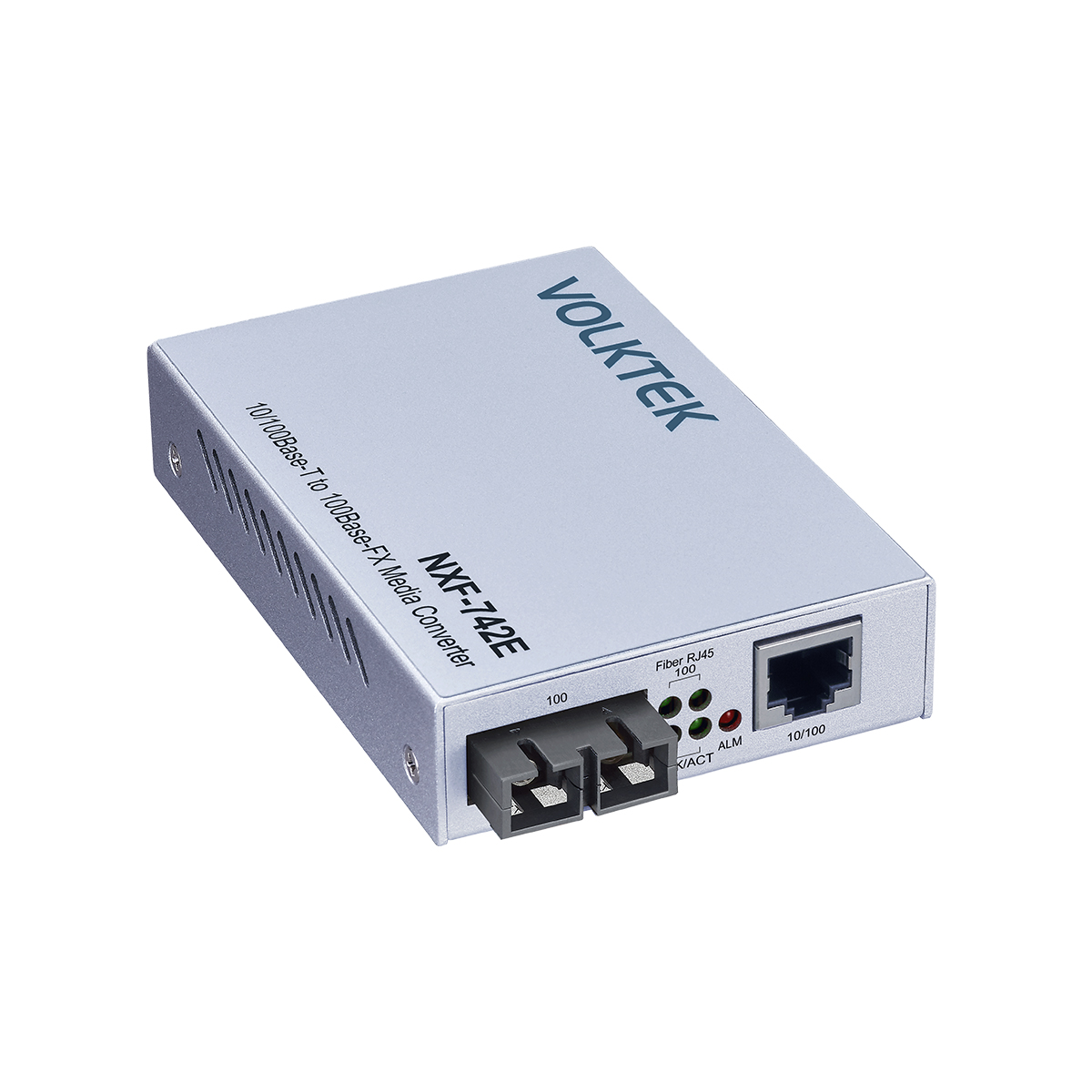

NXF-742E is a 10/100 RJ45 to 100FX Copper to the Fiber media converter. It's an inexpensive and minimal solution with automatic MDI/MDI-X and Auto-negotiation, NWay support on RJ-45. The device uses LED signaling to inform users of its transmission activity. The converter is completely transparent when connected, meaning that network performance remains unchanged. The device is available in single- and multi-mode fiber with data transmission delivery at distances of 2/30/40/60/100km depending on request. For added flexibility, this media converter is available with ST, SC, TX, RX connector. This media converter operates between temperatures of 0°C~50°C (32°F~122°F). The device has a standard size to fit on an in-rack solution with multiple media converters.
Standards
IEEE 802.3
10BASE-T
IEEE 802.3u
100BASE-TX/FX
Interface
Ports
1 x 10/100BASE-TX (RJ45)
1 x 100BASE-FX (SC/ST)
LED Panel
LNK/ACT, FDX/COL, LFS, Fiber (100, LNK/ACT), RJ45 (100, LNK/ACT)

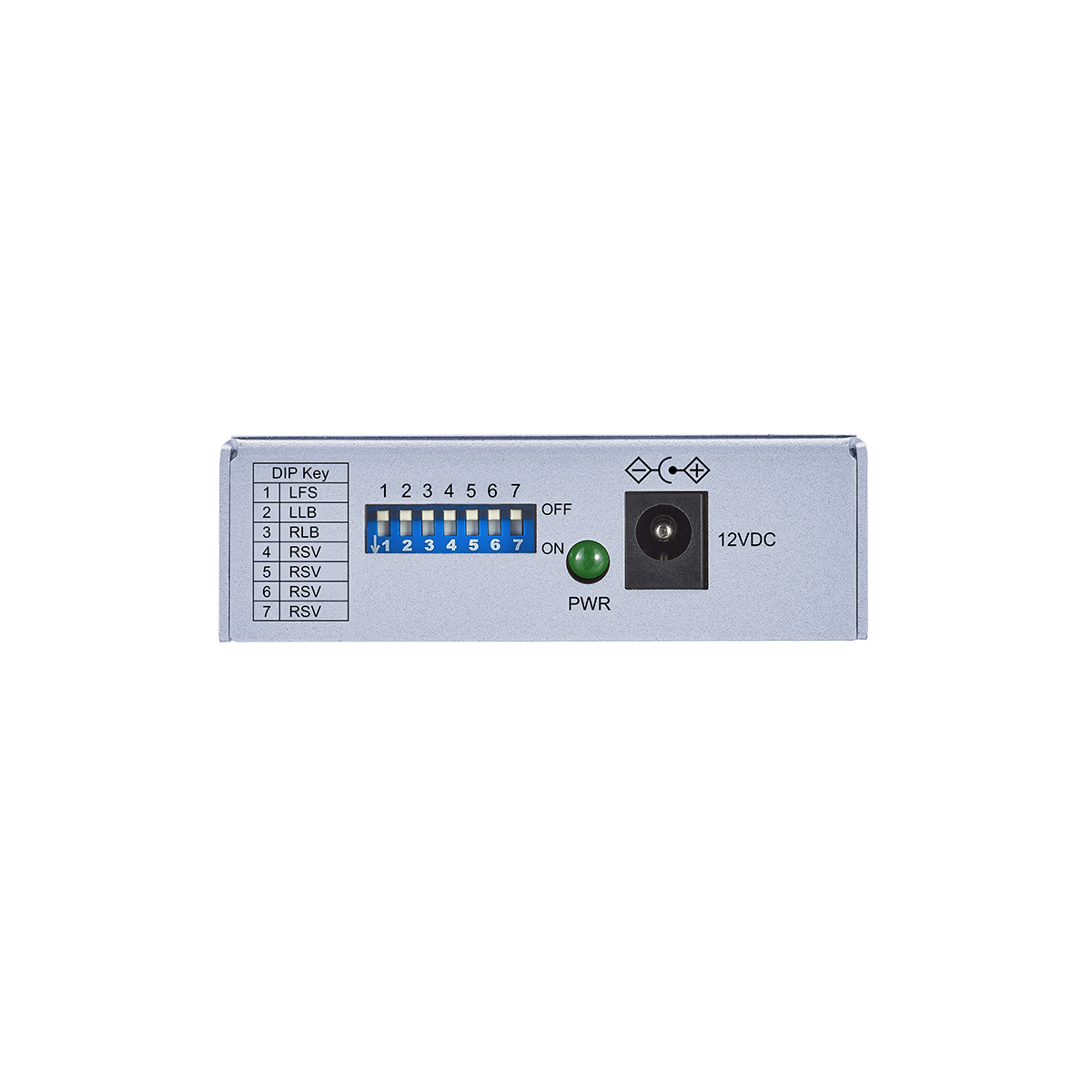

DIP
1.NWay
2.TX DPX
3.TX SPD
4.FX DPX
5.LFS
6.RLB
7.RSV
Power
Input Voltage
12V DC, via external power adapter
Power Consumption
1.92W
Mechanical and Environment
Housing
Aluminum
Mounting
Wall-Mount, DIN-Rail (Optional), Chassis Compatible
Operating Temperature
0ºC~50ºC (32°F~122°F)
Storage Temperature
-40°C~85°C (-40°F~185°F)
Operating Humidity
5 to 95% RH (non-condensing)
Storage Humidity
5 to 95% RH (non-condensing)
Weight
138 g (0.3 lb)

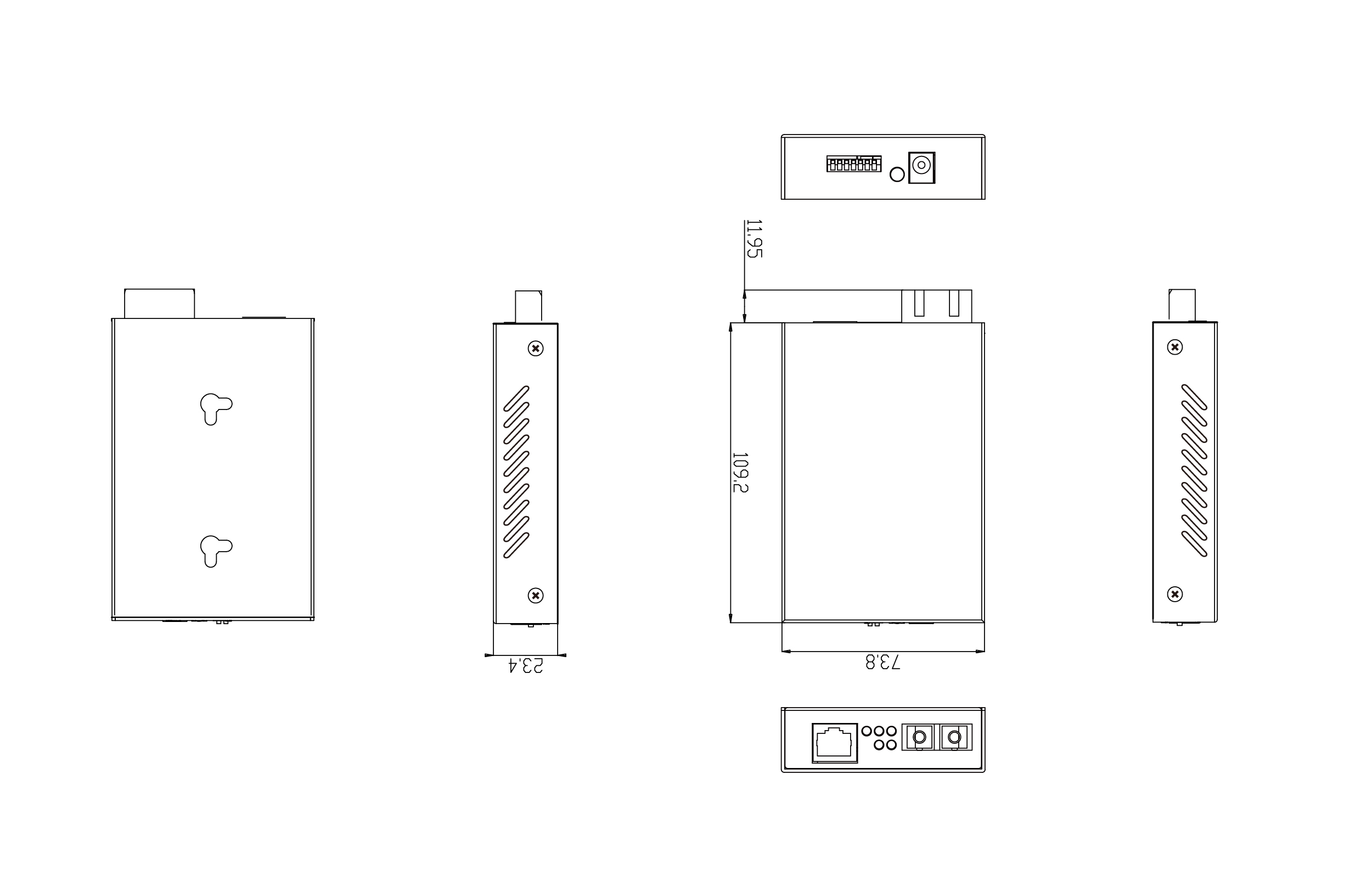

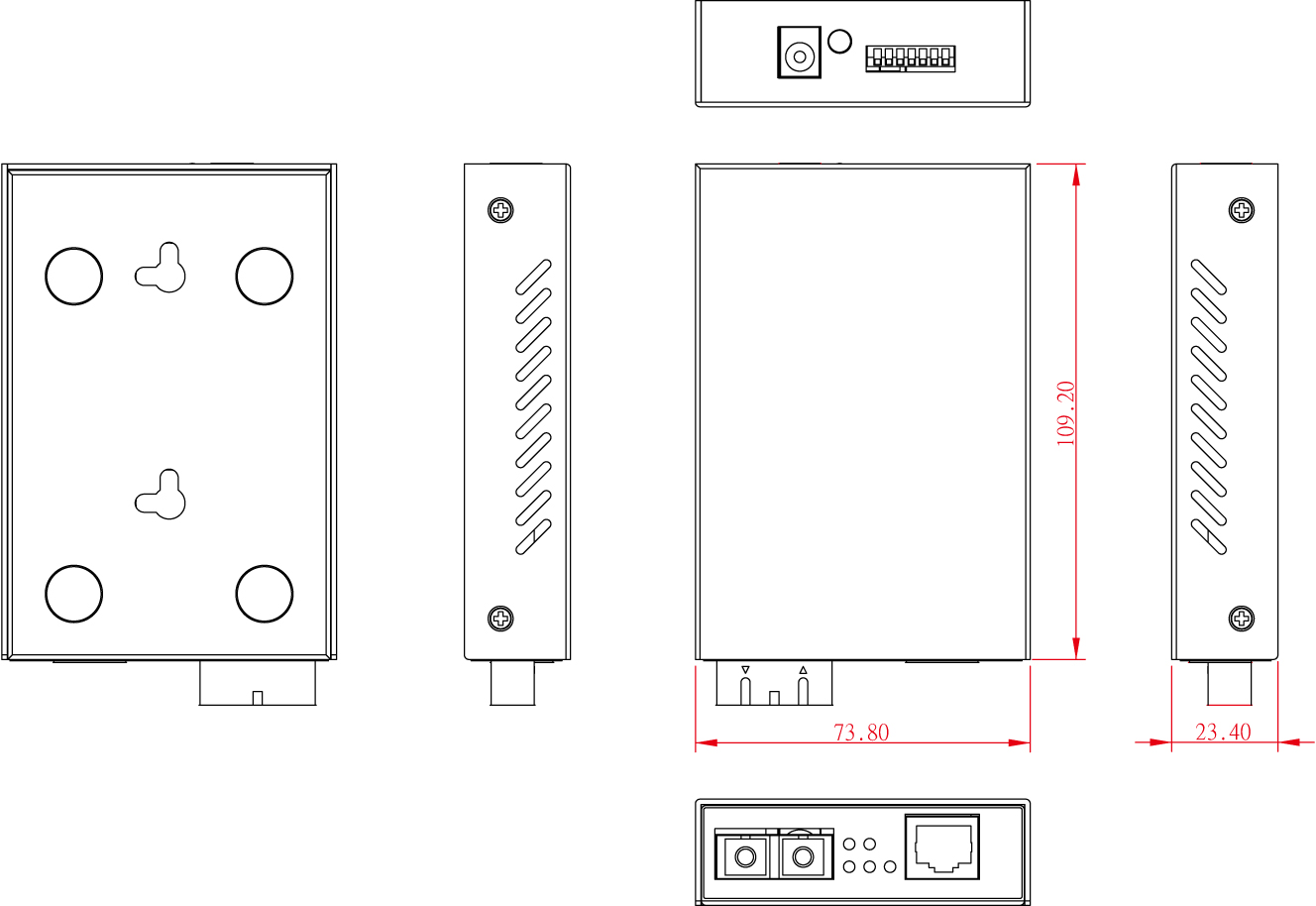

Dimensions (W x H x D)
73.8 x 23.4 x 109.2mm (2.9 x 0.9 x 4.3 in)
Ordering Information
| Model | Description |
|---|---|
| NXF-742E-MT | 10/100BASE-TX to 100BASE-FX (ST) Multi-mode 2km Media Converter |
| NXF-742E-MC | 10/100BASE-TX to 100BASE-FX (SC) Multi-mode 2km Media Converter |
| NXF-742E-SC | 10/100BASE-TX to 100BASE-FX (SC) Single mode 30km Media Converter |
| NXF-742E-SC40 | 10/100BASE-TX to 100BASE-FX (SC) Single mode 40km Media Converter |
| NXF-742E-SC60 | 10/100BASE-TX to 100BASE-FX (SC) Single mode 60km Media Converter |
| NXF-742E-SC100 | 10/100BASE-TX to 100BASE-FX (SC) Single mode 100km Media Converter |
| NXF-742E-TS20 |
10/100BASE-TX to 100BASE-FX Single FiberMedia Converter, 20km TX 1310nm/RX 1550nm Transmitter |
| NXF-742E-TS40 |
10/100BASE-TX to 100BASE-FX Single Fiber Media Converter, 40km TX 1310nm/RX 1550nm Transmitter |
| NXF-742E-RS20 |
10/100BASE-TX to 100BASE-FX Single Fiber Media Converter, 20km TX 1550nm/RX 1310nm Receiver |
| NXF-742E-RS40 |
10/100BASE-TX to 100BASE-FX Single Fiber Media Converter, 40km X 1550nm/RX 1310nm Receiver |
*Specifications subject to change without prior notice.
| File Name | Release Date | Download |
|---|---|---|
| NXF-742E_Datasheet | 2025-01-13 |
|
