INS-8615 is a high-performance 5-port 10/100/1000 RJ45 downlink and 1-port multi-rate FX/GbE SFP uplink managed industrial switch designed for communication between controllers and devices in automation settings. The SFP port offers long-distance, noise-free fiber transmissions that adapt to Fast and Gigabit Ethernet speeds. It is used with multi-axis robots and their peripherals such as PLCs, HMIs, and legacy devices. It offers auto-negotiation on all its ports and Modbus TCP to aggregate devices easily in industrial Ethernet applications.
The switch optimizes traffic with Storm, and Flow Control, and QoS - it prioritizes industrial data packets, prevents the loss of data during communication, and offers a stable transmission. It has a topology map to visualize the network and complies with cybersecurity standards to safeguard the network from vulnerabilities.
This switch is built with industrial-grade components and enclosed in an IP40 aluminum case with high thermal conductivity, which protects the device from tools and hazards. Designed to withstand vibration, shock, free fall, interference, and temperatures ranging from -40℃~75℃ (-40°F~167°F), it suits extreme industrial applications. To ensure reliability the redundant power supply and alarm relay contact on the terminal block ensures non-stop operations and issues alerts if power fails.
Robust Electrical and Electromagnetic Safeguard
Engineered to withstand EMI (electromagnetic interference), ESD (Electrostatic discharge), power surge, over voltage, over current, and reverse polarity.
Efficient Network Monitoring and Management
SNMP (Simple Network Management Protocol) and RMON (Remote Monitoring) protocols for efficient traffic management and monitoring.
Port-based and IEEE 802.1Q VLAN
GARP (Generic Attribute Registration Protocol) and GVRP (Generic VLAN Registration Protocol) for segmentation of large networks into smaller parts and separate broadcast domains.
Efficient Traffic Prioritization
Effective QoS mechanisms for priority assignment, transmission of dedicated traffics to specific applications, and allocation of appropriate bandwidth to mission-critical communications.
Gigabit Connectivity
5 10/100/1000Base-T ports and 1 Gigabit SFP slot for long-distance transmission via fiber port.
Standards
IEEE 802.3
10BASE-T
IEEE 802.3u
100BASE-TX
IEEE 802.3ab
1000BASE-T
IEEE 802.3u
100BASE-FX
IEEE 802.3z
1000BASE-SX/LX
IEEE 802.3
Nway Auto-negotiation
IEEE 802.3x
Flow Control
IEEE 802.3ad
Link Aggregation
IEEE 802.3az
Energy Efficient Ethernet (EEE)
IEEE 802.1AB
LLDP
IEEE 802.1D
STP
IEEE 802.1w
RSTP
IEEE 802.1p
Class of Service
IEEE 802.1Q
VLAN Tagging
IEEE 802.1X
Port Authentication

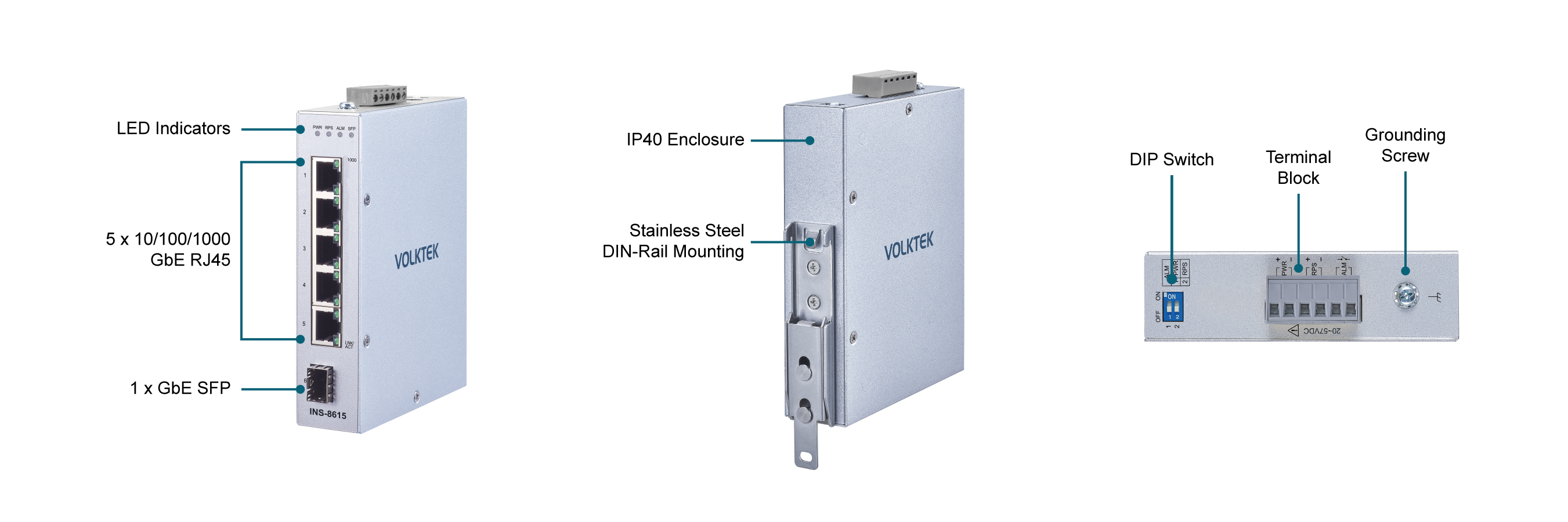

Interface
Ports
5 x 10/100/1000BASE-T (RJ45)
1 x GbE SFP Slot
DIP Switch
Primary/Redundant Power Voltage Drop Alarm setting
LED Panel
PWR, RPS, ALM, SFP, 1000, LNK/ACT
Power
Input Voltage
Primary inputs：20~57VDC
Redundant inputs：20~57VDC
Connection
Terminal Block
Power Consumption
10W
Alarm Relay
One relay output, 1 A @ 24V DC
Mechanical and Environment
Housing
Metal Case (IP40 protection)

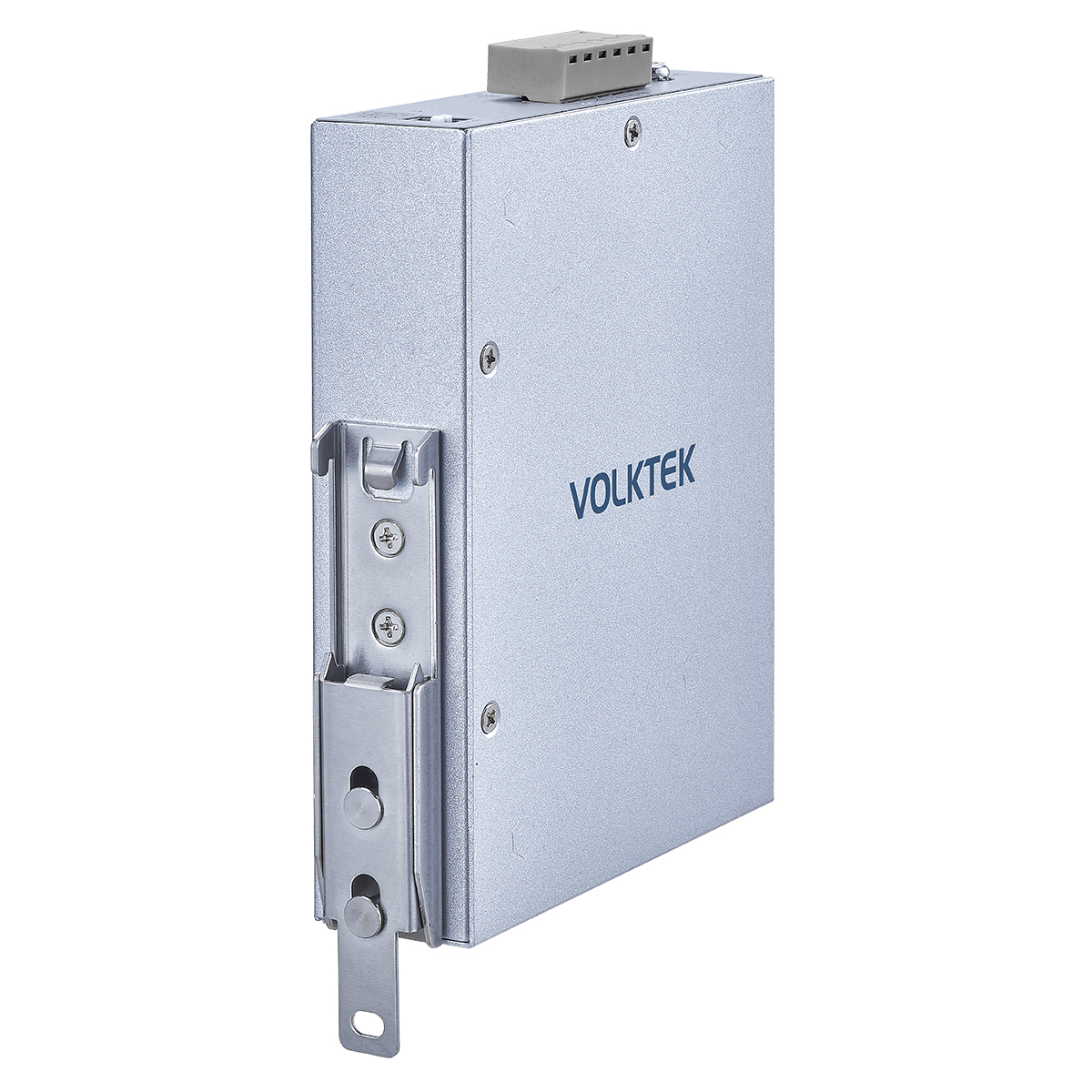

Mounting
DIN-Rail
Operating Temperature
-40°C~75°C (-40°F~167°F)
Storage Temperature
-40°C~85°C (-40°F~185°F)
Operating Humidity
5 to 95% RH (non-condensing)
Storage Humidity
5 to 95% RH (non-condensing)
Weight
533g (1.17lb)

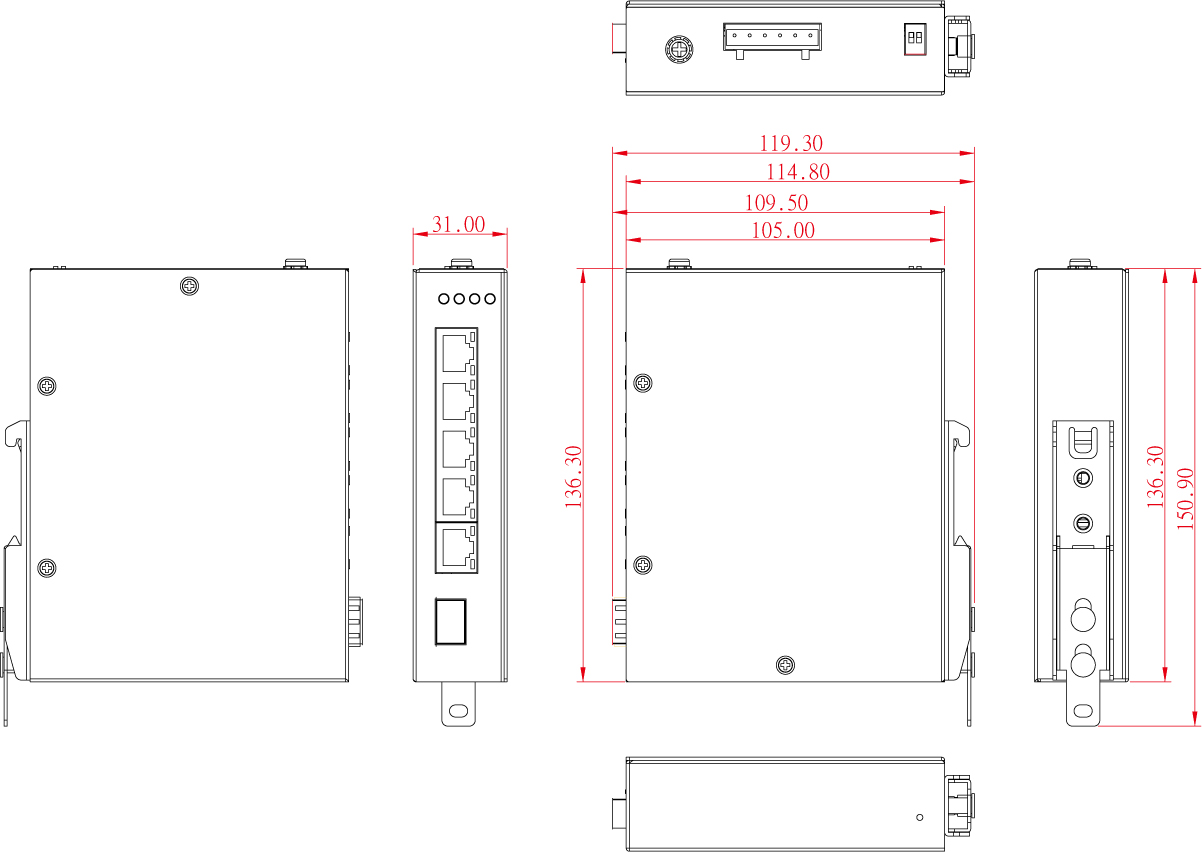

Dimension (WxHxD)
31 × 136 × 105 mm (1.22 × 5.35 × 4.13 in)
Ordering Information
| Model | Description |
|---|---|
| INS-8615 | Managed 5 x 10/100/1000 RJ45 & 1 x FX/GbE SFP Switch |
*Specifications subject to change without prior notice.
| File Name | Release Date | Download |
|---|---|---|
| INS-8615 Datasheet | 0000-00-00 |
|
