* The highest degree of temperature operation certified by UL is -40°C~60°C (-40°F~140°F).
INS-8408A is an unmanaged 8-port, 10/100/1000 RJ45 downlink industrial switch for communication between controllers and devices in automation settings. The device can be used with multi-axis robots and their peripherals such as PLCs, HMIs, and legacy devices. Additionally, it offers auto-negotiation on all its ports to aggregate devices easily in industrial Ethernet applications. The switch offers various in-built traffic optimization and network performance features to prioritize important industrial data packets.
This switch is built with industrial grade components, enclosed in IP30 metal to protect the device from tools and hazards. Designed to withstand vibration, shock, free fall, interference, and temperatures ranging from -40℃~75℃ (-40°F~167°F) it suits extreme industrial environments.
Robust Electrical and Electromagnetic Safeguard
Engineered to withstand EMI (electromagnetic interference), ESD (Electrostatic discharge), power surge, over voltage, over current, and reverse polarity.
Eco-friendly Green Ethernet Technology
IEEE802.3az Energy Efficient Ethernet (EEE) compliant with Green Ethernet technology for automatic adjustment of power consumption.
Standards
IEEE 802.3
10BASE-T
IEEE 802.3u
100BASE-TX
IEEE 802.3ab
1000BASE-T
IEEE 802.3
Nway Auto-negotiation
IEEE 802.3x
Flow Control
IEEE802.3az
Energy Efficient Ethernet (EEE)
Interface
Ports
8 x 10/100/1000Base-T (RJ45)
Connectors
Terminal Block

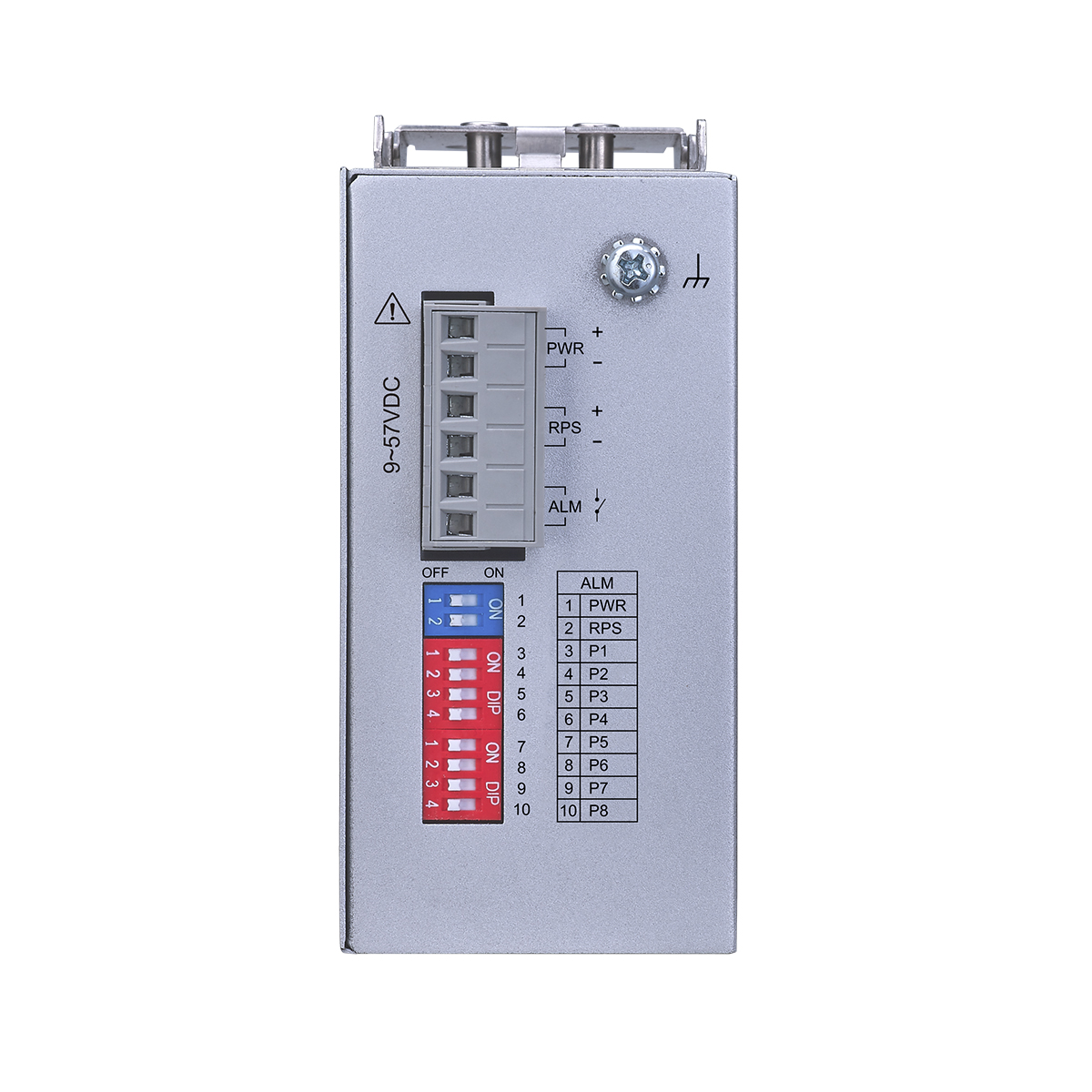

DIP Switch
Primary/Redundant (PWR/RPS) power voltage drop alarm setting
Per Port connectivity status alarm setting
LED Panel
PWR, RPS, ALM, 1000M, LNK/ACT
Power
Input Voltage
Primary inputs：9V~57VDC
Redundant inputs：9V~57VDC
Connection
Teminal Block
Power Consumption
5W
Alarm Relay
One relay output, 1 A @ 24V DC
ESD protection
8KV / 15KV
Surge protection
3KV / 6KV (RJ45 Ports Line to ground)
Reverse Polarity
Present
Overload current
Present
Mechanical and Environment
Housing
Metal (IP30 protection)

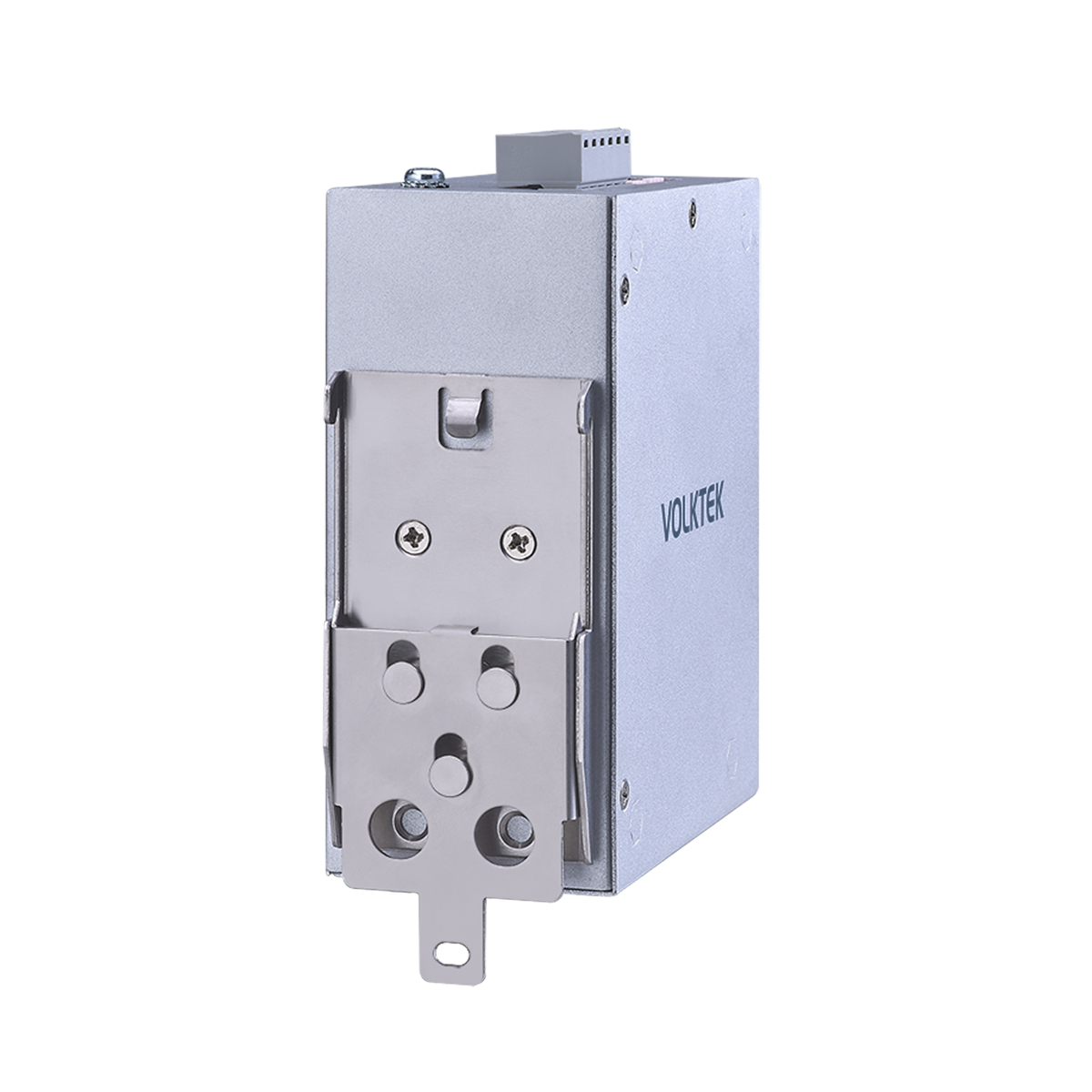

Mounting
DIN-Rail
Operating Temperature
-40°C~75°C (-40°F~167°F)
Storage Temperature
-40°C~85°C (-40°F~185°F)
Operating Humidity
5 to 95% RH (non-condensing)
Storage Humidity
5 to 95% RH (non-condensing)
Weight
480 g (1.0 lb)
Dimension (WxHxD)
50 x 119.2 x 99.9 mm (1.97 x 4.69 x 3.93 in)
Ordering Information
| Model | Description |
|---|---|
| INS-8408A | Unmanaged 8 x 10/100/1000 RJ45 Industrial Switch |
*Specifications subject to change without prior notice.
