* The highest degree of temperature operation certified by UL is -40˚C~75˚C (-40°F~167°F).
INS-8108E is an unmanaged 8-port, 10/100 RJ45 downlink industrial switch for very elementary interconnection between devices with Premium features. It offers auto-negotiation on all its ports to aggregate devices easily in industrial Ethernet applications. The switch offers in-built traffic optimization to have stable performance and prevents packet loss by transporting VLAN packets without modifying them. Additionally, it prioritizes data with industrial QoS priority for Ethernet/IP, PROFINET, and GOOSE packets.
This switch is built with industrial-grade components and enclosed in an IP30 aluminum case to protect the device from tools and hazards. Designed to withstand vibration, shock, free fall, interference, and temperatures ranging from -40℃~75℃ (-40°F~167°F) it suits extreme industrial environments.
Protected Against Unpredictable and Harsh Environment
Engineered to withstand electrostatic discharge, power surge, over-voltage, over-current, high-vibration, and reverse polarity in the event of an accident.
Simple Installation and Compact Size
Auto MDI/MDI-X (medium dependent interface / MDI crossover) on all ports for simple connection to other switches and hubs.
Broadcast Storm
Monitors traffic storm levels of the incoming broadcast packet rate and limits over an interval of time to prevent unnecessary traffic and safeguard performance.
Standards
IEEE 802.3
10Base-T
IEEE 802.3u
100Base-TX
IEEE 802.3
Nway Auto-negotiation
IEEE 802.3x
Flow Control
IEEE 802.1p
Class of service
Interface
Ports
8 x 10/100Base-TX (RJ45)
LED Panel
PWR, 100, LNK/ACT
Power
Input Voltage
12~48 VDC
Connection
Terminal block
Power Input Polarity Protection
Present
Power Consumption
1.8W (Max)
Mechanical and Environment
Housing
Aluminum (IP40 Protection)

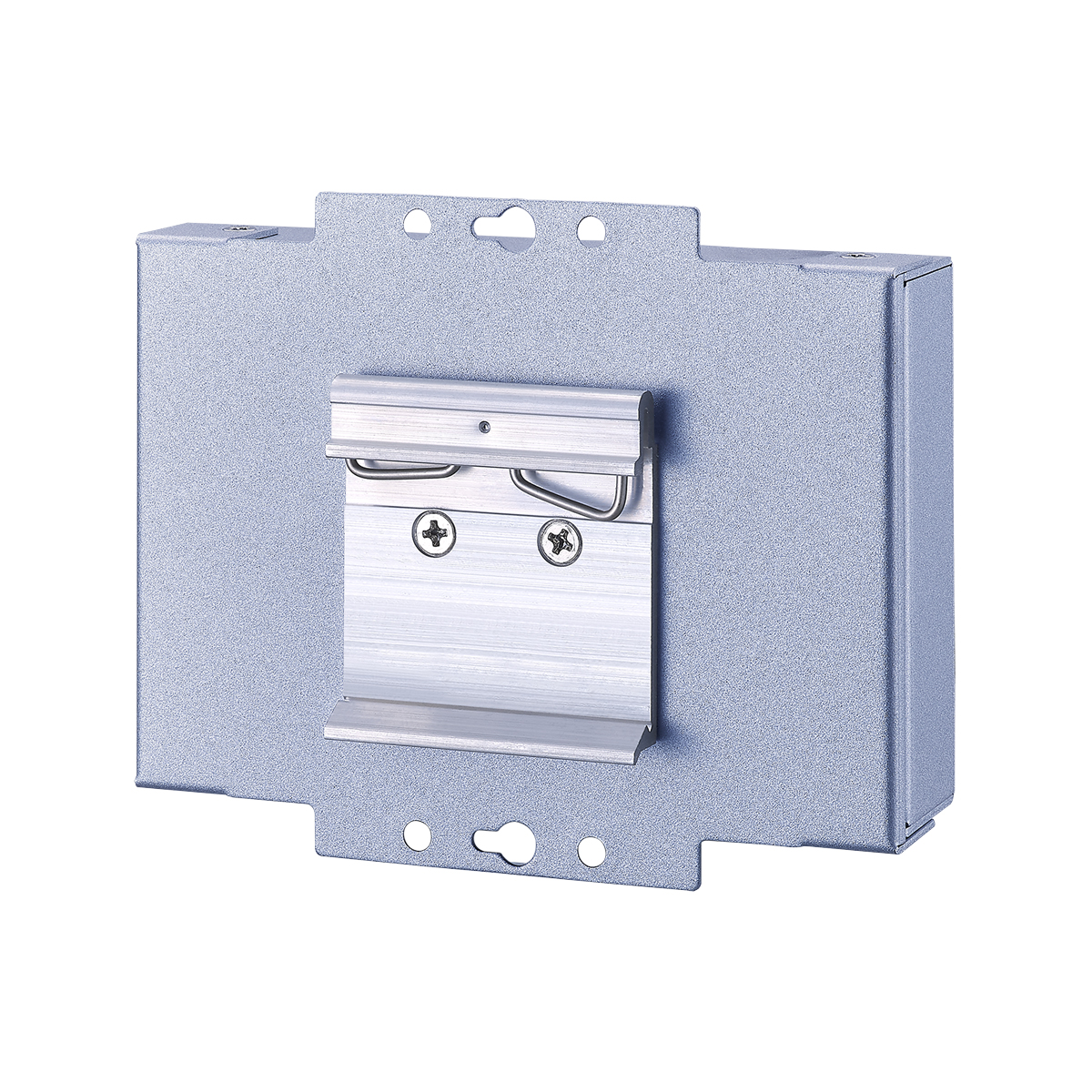

Mounting
DIN-Rail, Wall Mount (optional)
Operating Temperature
-40°C~75°C (-40°F~167°F)
Storage Temperature
-40°C~85°C (-40°F~185°F)
Operating Humidity
5 to 95% RH (non-condensing)
Storage Humidity
5 to 95% RH (non-condensing)
Weight
145 g (0.32 lb)
Dimension (WxHxD)
109.2 x 73.8 x 30.73 mm (4.3 x 2.9 x 1.2 in)
Ordering Information
| Model | Description |
|---|---|
| INS-8108E | Premium Unmanaged 8 x 10/100 RJ45 Industrial Switch |
*Specifications subject to change without prior notice.
