* The highest degree of temperature operation certified by UL is -40℃~80℃ (-40°F~176°F)
The INS-806E is an unmanaged 8-port 10/100 RJ45 downlink industrial switch, designed for basic device interconnection with premium features. It supports auto-negotiation on all ports, allowing seamless device aggregation in industrial Ethernet applications. The switch features built-in traffic optimization to ensure stable performance and prevent packet loss by forwarding VLAN packets without modification. Additionally, it prioritizes data with industrial QoS, optimizing EtherNet/IP (EIP), PROFINET, and GOOSE packet transmissions.
Built with industrial-grade components, the IP40-rated aluminum enclosure protects the device from tools and environmental hazards. Designed to withstand vibration, shock, free fall, interference, and extreme temperatures ranging from -40°C to 80°C (-40°F to 176°F), it is ideal for harsh industrial environments
Protected Against Unpredictable and Harsh Environments
Engineered to withstand electrostatic discharge, power surges, over-voltage, over-current, high vibration, and reverse polarity, ensuring reliable operation even in the event of an accident.
Simple Installation and Compact Design
Supports Auto MDI/MDI-X (Medium Dependent Interface/MDI Crossover) on all ports, allowing seamless connections to other switches and hubs without additional configuration.
Broadcast Storm Control
Monitors incoming broadcast traffic levels and limits excessive packet rates over a set interval, preventing unnecessary network congestion and ensuring optimal performance.
Standards
IEEE 802.3
10BASE-T
IEEE 802.3u
100BASE-TX
IEEE 802.3
Nway Auto-negotiation
IEEE 802.3x
Flow Control
IEEE802.1p
Class of Service
Interface
Ports
8 x 10/100BASE-TX (RJ45)

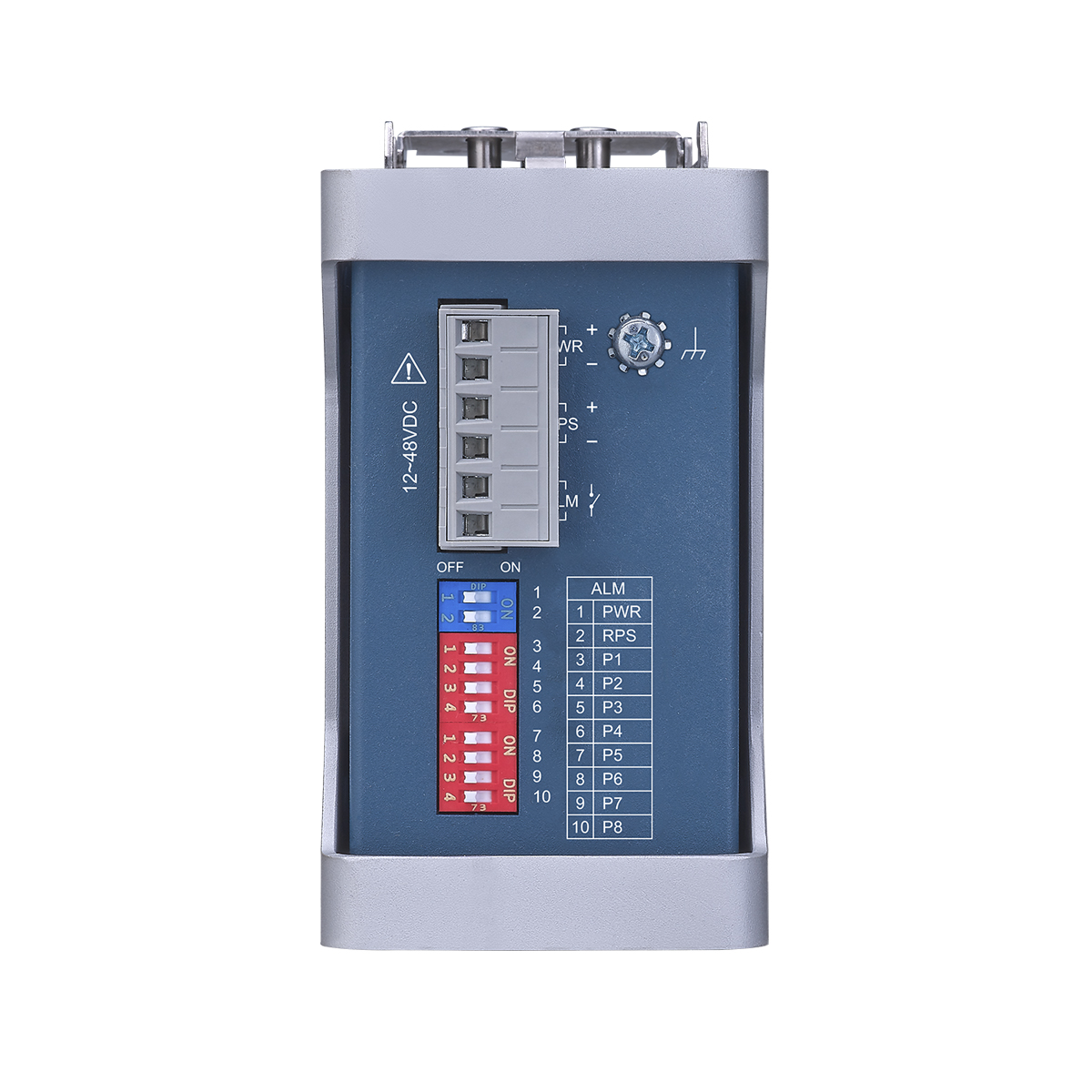

DIP Switch
PWR, RPS, P1 ~ P8
LED Indicator
PWR, RPS, ALM, 100, LNK/ACT
Power
Input Voltage
Primary input 12~48VDC
Redundant input 12~48VDC
Connector
Terminal Block
Max Power Consumption
5W
Alarm Relay
One relay output, 1A @ 24V DC
Reverse Polarity Protection
Present
Over Load Protection
Present
Mechanical and Environment
Housing
Aluminum (IP40 protection)

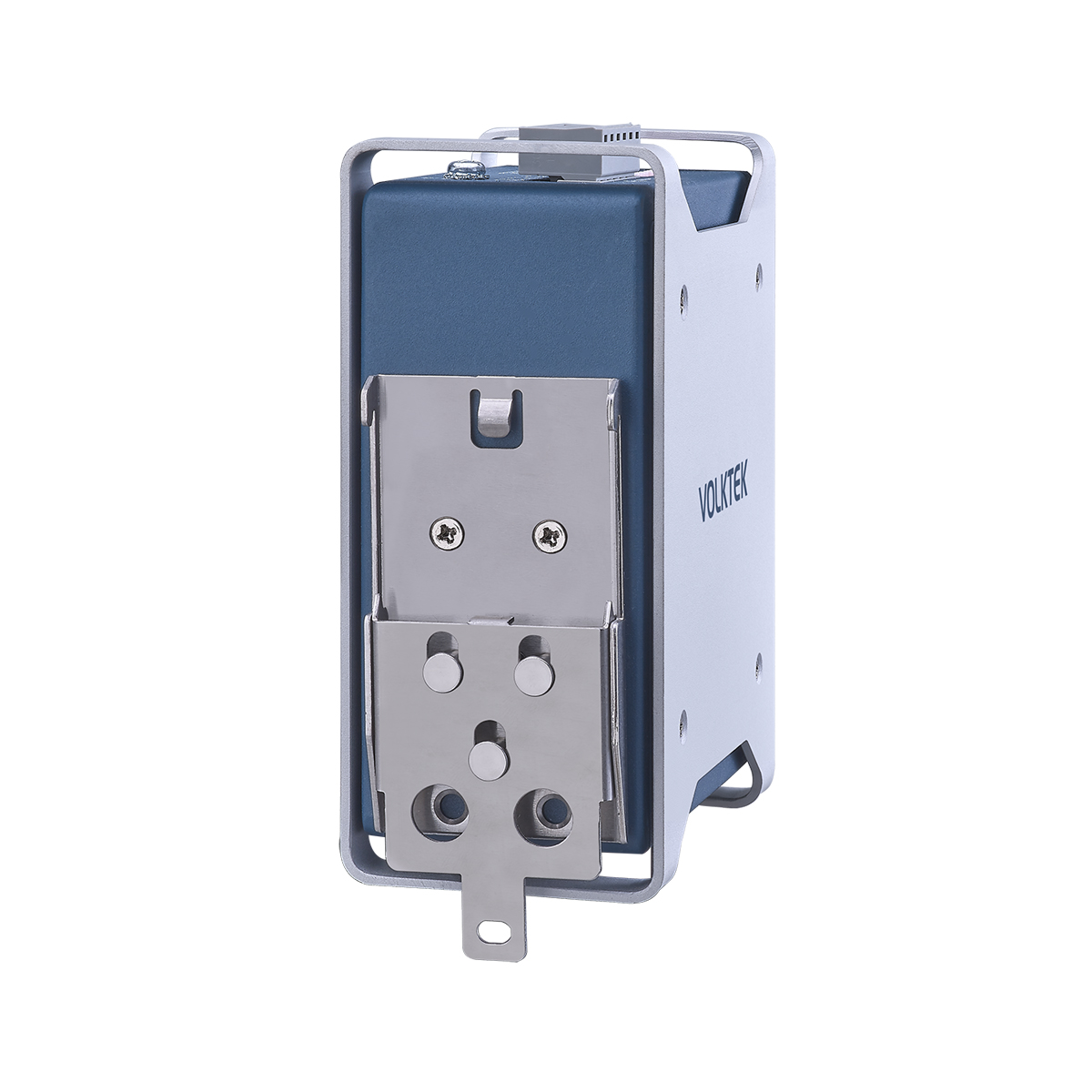

Mounting
DIN-Rail
Operating Temperature
-40°C~80°C (-40°F~176°F)
Storage Temperature
-40°C~85°C (-40°F~185°F)
Operating Humidity
5 to 95% RH (non-condensing)
Storage Humidity
5 to 95% RH (non-condensing)
Weight
480g (1.0 lb)
Dimension (WxHxD)
50 x 115.8 x 99.6mm (1.97 x 4.56 x 3.92in)
Ordering Information
| Model | Description |
|---|---|
| INS-806E | Premium Unmanaged 8 x 10/100 RJ45 Industrial Switch |
*Specifications subject to change without prior notice.
