* The highest degree of temperature operation certified by UL is -40˚C~80˚C (-40°F~176°F).

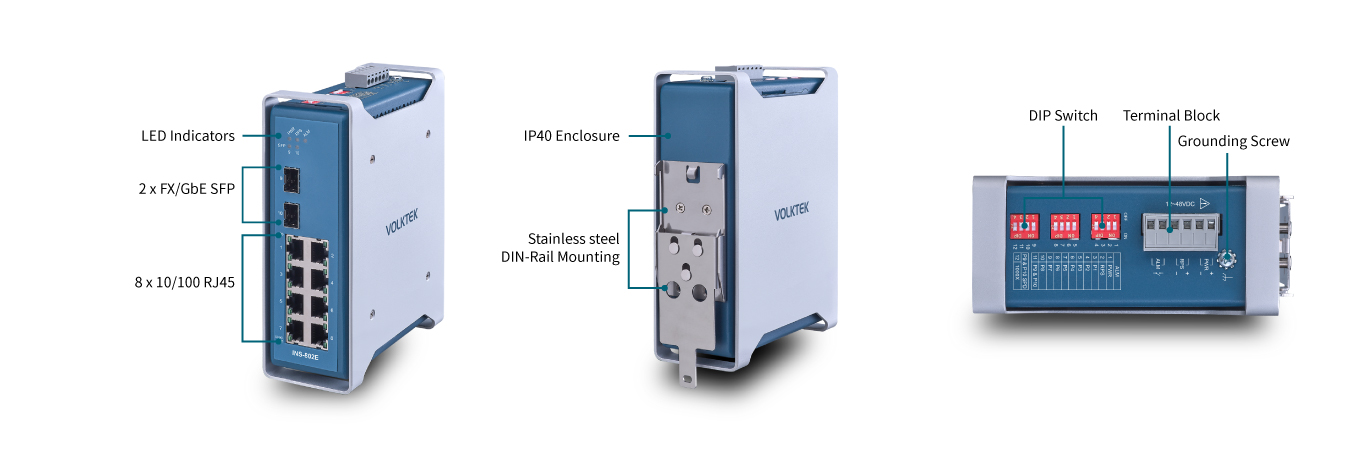

The INS-802E is an unmanaged industrial switch equipped with 8-port 10/100Base-TX, and 2-port FX/GbE SFP, dual fiber uplinks and redundant DC power inputs, an ideal solution for deployment in multiple high-speed automation systems. With its dry-contact smart alarm, the INS-802E initiates an alarm function that can be seen and heard on the factory floor in the event of any malfunction. The INS-802E operates in wide temperatures ranging from -40°C to 75°C and absorbs higher than average degrees of vibration and shock, making it perfectly suitable and safe choice for harsh industrial environments.
This switch is built with industrial-grade components, enclosed in an IP40 aluminum case to protect the device from tools and hazards. Designed to withstand vibration, shock, free fall, interference, and temperatures ranging from -40℃~80℃ (-40°F~176°F) it suits extreme industrial environments.
It's Accident Proof
Engineered to withstand electromagnetic interference, electrostatic discharge, power surge, over-voltage, over-current in the event of an accident.
Redundant Power System

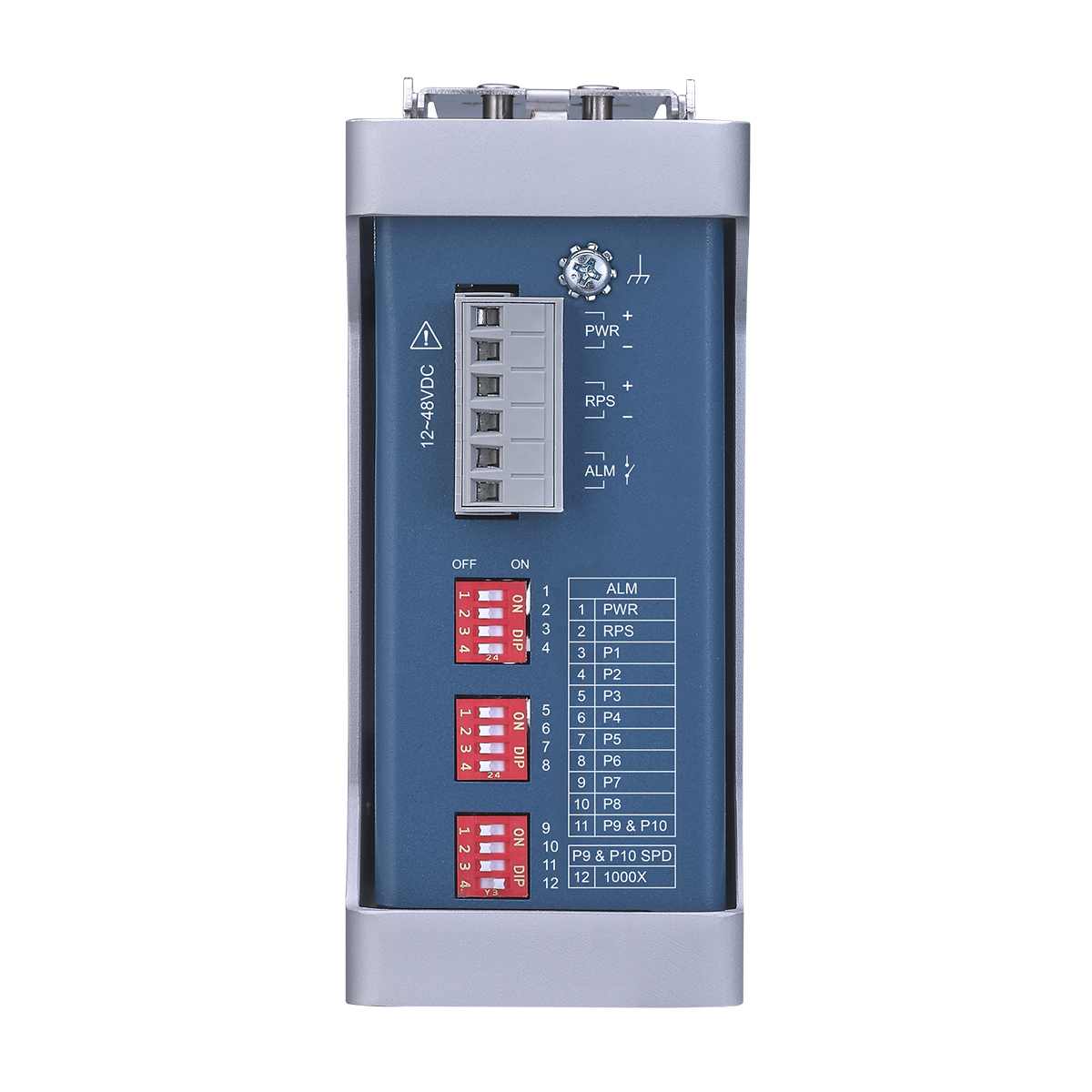

To guarantee power runs continuously the switch is designed to be simultaneously connected to two power supplies and an alarm through a standard industrial terminal block. If one power supply stops working the switch will start feeding its power on the alternative power supply and the alarm will go off to notify technicians about the event.
Simple Installation and Compact Size
Auto MDI/MDI-X (medium dependent interface / MDI crossover) on all ports for simple connection to other switches and hubs.
Comprehensive QoS
Supports IEEE 802.1p Quality of Service (QoS) which enhances bandwidth utilization to ensure time-sensitive data gets delivered efficiently to mission-critical applications without any delay even during a burst of high traffic.
Standards
IEEE 802.3
10Base-T
IEEE 802.3u
100Base-TX/FX
IEEE 802.3z
1000Base-SX/LX
IEEE 802.3
Nway Auto-negotiation
IEEE 802.3x
Flow Control
IEEE802.1p
Class of Service
IEEE 802.3
10BASE-T
Interface
Ports
8 x 10/100Base-TX (RJ45)
2 x FX/GbE (SFP)
Power
Input Voltage
Primary inputs: 12 ~ 48VDC
Redundant inputs: 12 ~ 48VDC
Connection
Terminal block
Power Input Polarity Protection
Present
Power Voltage Drop Alarm
Present
Power Consumption
12W (Max)
Alarm Relay
One relay output, 1 A @ 24V DC
ESD Protection
Present
Mechanical and Environment
Housing
Aluminum (IP40 protection)

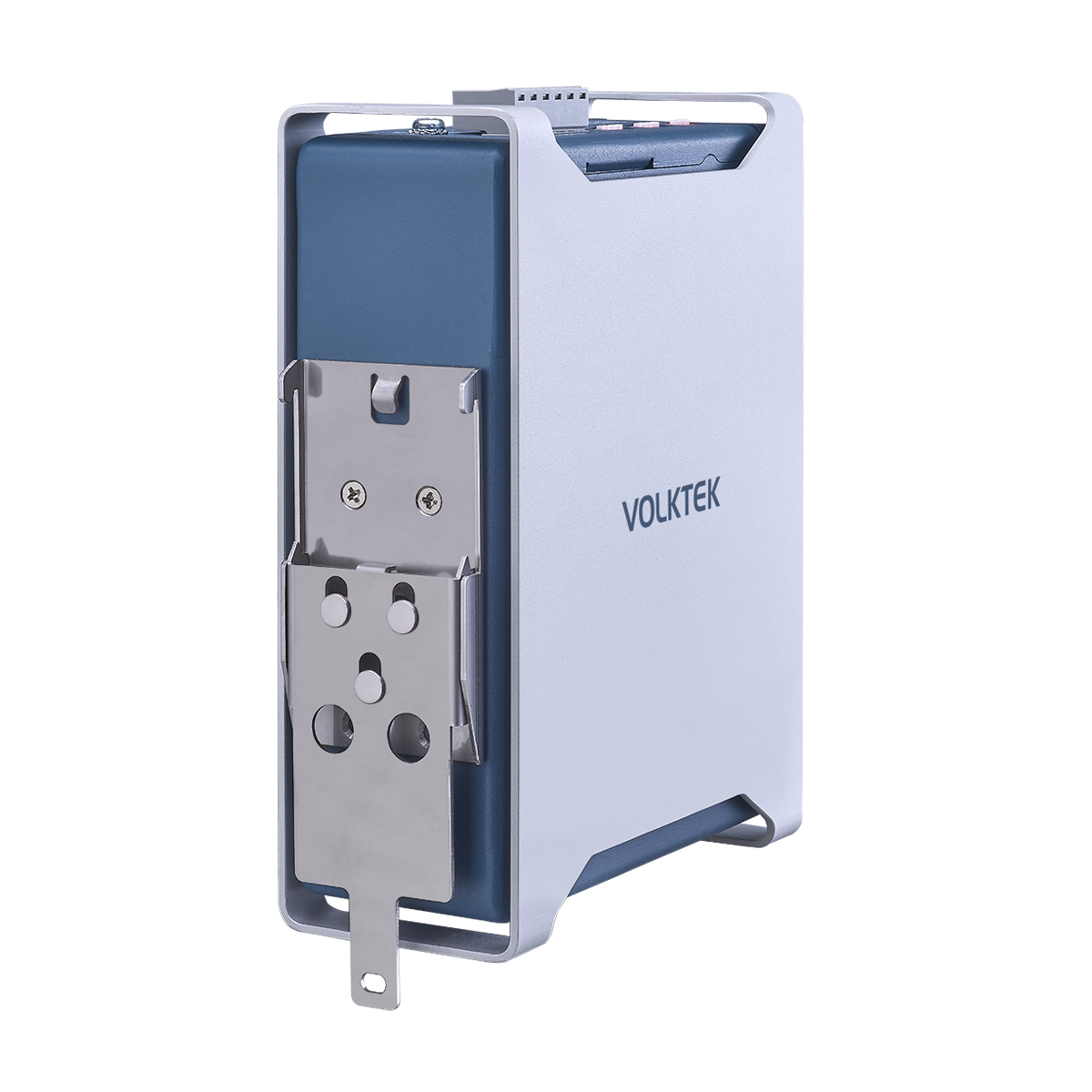

Mounting
DIN-Rail
Operating Temperature
-40°C to 80°C
Storage Temperature
-40°C to 85°C
Operating Humidity
5 to 95% RH (non-condensing)
Storage Humidity
5 to 95% RH (non-condensing)
Weight
800g
Dimension (WxHxD)
57.3 x 174.0 x 126.7 mm (2.26 x 6.85 x 4.99 in)
Ordering Information
| Model | Description |
|---|---|
| INS-802E | Premium Unmanaged 8 x 10/100 RJ45 & 2 x FX/GbE SFP Industrial Switch |
*Specifications subject to change without prior notice.
