* The highest degree of temperature operation certified by UL is -40˚C~80˚C (-40°F~176°F).
The INS-801E is an unmanaged 5-port 10/100 RJ45 downlink industrial switch, designed for basic device interconnection with premium features. It supports auto-negotiation on all ports, enabling easy device aggregation in industrial Ethernet applications. The switch includes built-in traffic optimization to ensure stable performance and prevent packet loss by transporting VLAN packets without modification. Additionally, it prioritizes data with industrial QoS for Ethernet/IP, PROFINET, and GOOSE packets.
Built with industrial-grade components, the switch is housed in a durable IP40-rated aluminum enclosure, protecting it from tools and environmental hazards. It is designed to withstand vibration, shock, free fall, interference, and operates in extreme temperatures ranging from -40°C to 80°C (-40°F to 176°F), making it ideal for harsh industrial environments.
Protected Against Unpredictable and Harsh Environments
Engineered to withstand electrostatic discharge, power surges, over-voltage, over-current, high vibration, and reverse polarity in the event of an accident.
Simple Installation and Compact Design
Supports Auto MDI/MDI-X (Medium Dependent Interface/MDI Crossover) on all ports, ensuring seamless connections with other switches and hubs.
Broadcast Storm Control
Monitors incoming broadcast traffic levels and limits excessive packet rates over a set interval, preventing unnecessary network congestion and ensuring optimal performance.
Prioritize Manufacturing Data with iQoS
In modern factory automation, heavy data traffic must be prioritized based on industrial communication protocols. Volktek’s iQoS (Industrial QoS) ensures priority handling of industrial data packets, including EtherNet/IP (EIP), PROFINET, and GOOSE (Generic Object-Oriented Substation Events). This enables real-time data transmission across various vendors and device types, even in time-sensitive applications.
Standards
IEEE 802.3
10BASE-T
IEEE 802.3u
100BASE-TX
IEEE 802.3
Nway Auto-negotiation
IEEE 802.3x
Flow Control
IEEE 802.1p
Class of Service

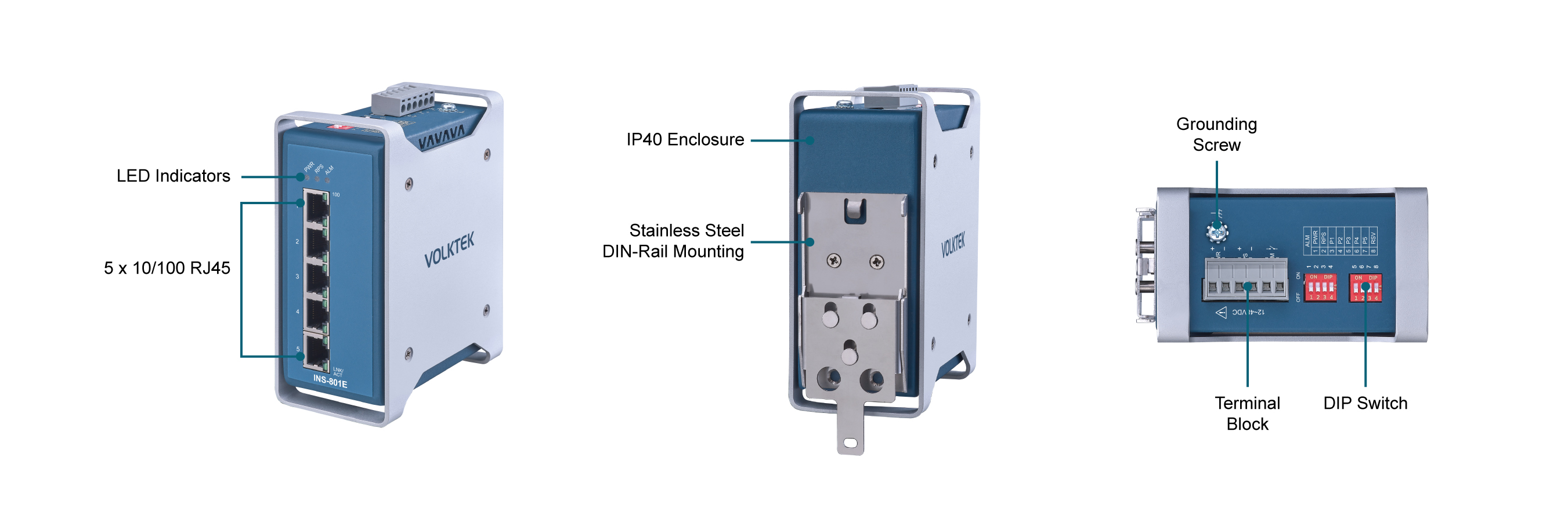

Interface
Ports
5 x 10/100BASE-TX (RJ45)

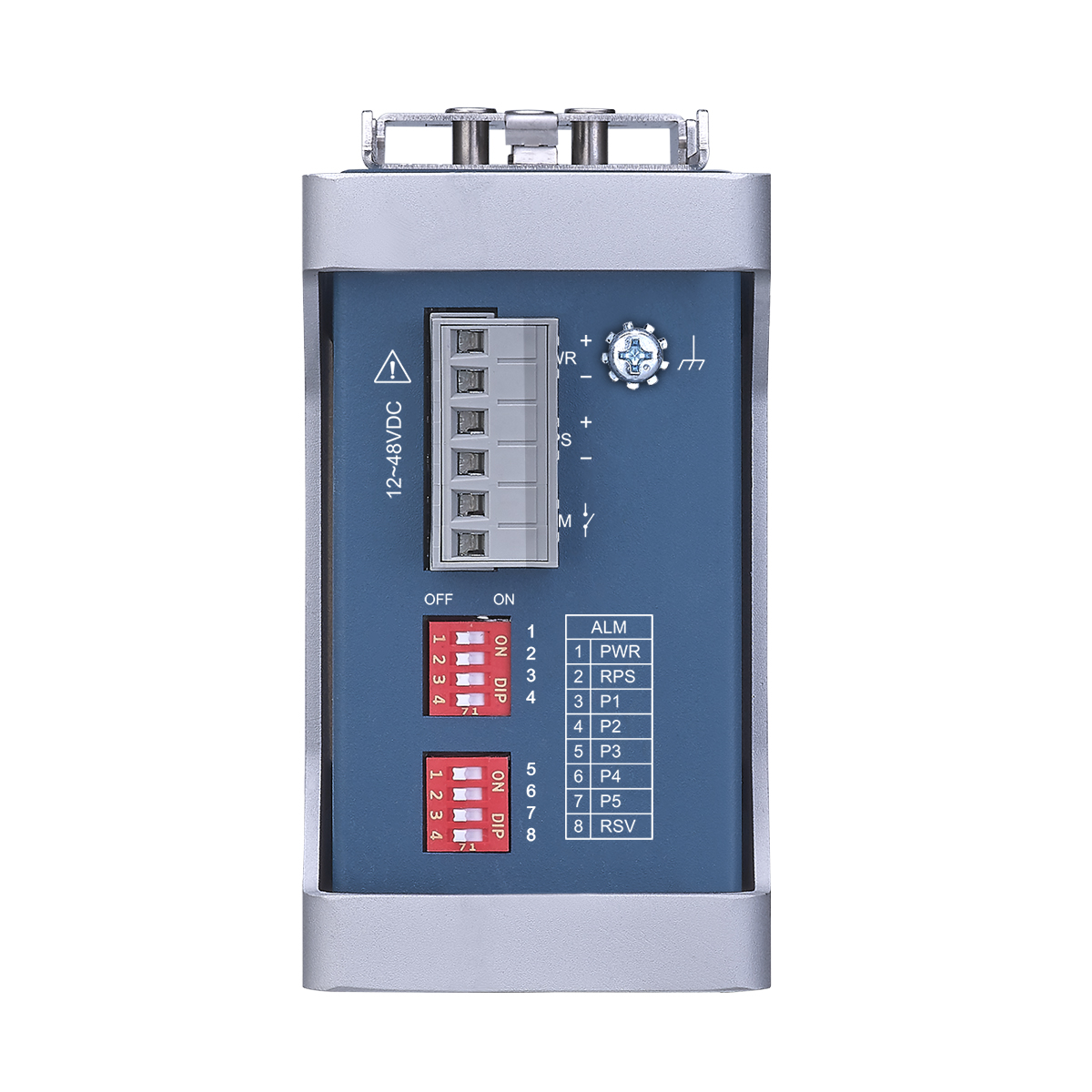

DIP Switch
PWR, RPS, P1 ~ P5
LED Panel
PWR, RPS, ALM, 100, LNK/ACT
Power
Input Voltage
Primary inputs 12~48VDC
Redundant inputs 12~48VDC
Connector
Terminal block
Max Power Consumption
2.05W (Max)
Alarm Relay
One relay output, 1 A @ 24V DC
Reverse Polarity Protection
Present
Over Load Protection
Present
Mechanical and Environment
Housing
Aluminum Case (IP40 protection)
Mounting
DIN-Rail
Operating Temperature
-40°C~80°C (-40°F~176°F)
Storage Temperature
-40°C~85°C (-40°F~185°F)
Operating Humidity
5 to 95% RH (non-condensing)
Storage Humidity
5 to 95% RH (non-condensing)
Weight
420g

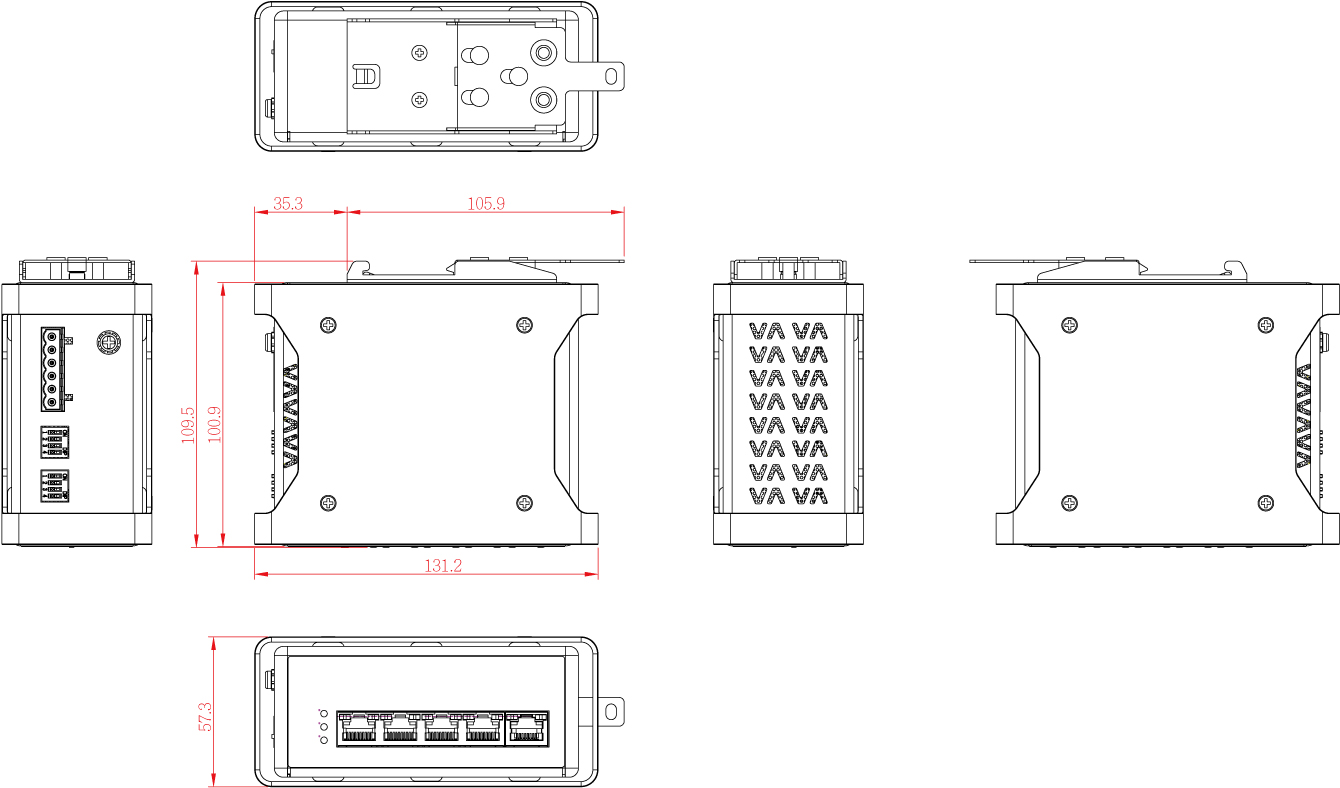

Dimension (WxHxD)
57.3x131.2x109.5 mm (2.26x5.17x4.31 inch)
Ordering Information
| Model | Description |
|---|---|
| INS-801E | Premium Unmanaged 5 x 10/100 RJ45 Industrial Switch |
*Specifications subject to change without prior notice.
