* The highest degree of temperature operation certified by UL is -40˚C~75˚C (-40°F~167°F).
INS-8005A is an unmanaged 5-port, 10/100 RJ45 downlink industrial switch for very elementary interconnection between devices. It offers auto-negotiation on all its ports to aggregate devices easily in industrial ethernet applications. The switch offers in-built traffic optimization to have stable performance and prevents packet loss by transporting VLAN packets without modifying them.
This switch is built with industrial grade components, enclosed in an IP40 metal case to protect the device from tools and hazards. Designed to withstand vibration, shock, free fall, interference, and temperatures ranging from -40℃~75℃ (-40°F~167°F) it suits extreme industrial environments.
Robust Electrical and Electromagnetic Safeguard
Engineered to withstand EMI (electromagnetic interference), ESD (Electrostatic discharge), power surge, over voltage, over current, and reverse polarity.
Simple Installation
Auto MDI/MDI-X (medium dependent interface / MDI crossover) on all ports for simple connection to other switches and hubs.
Standards
IEEE 802.3
10BASE-T
Interface
Ports
5 x 10/100Base-TX (RJ45
Power
Input Voltage
12~48VDC, 0.2A max

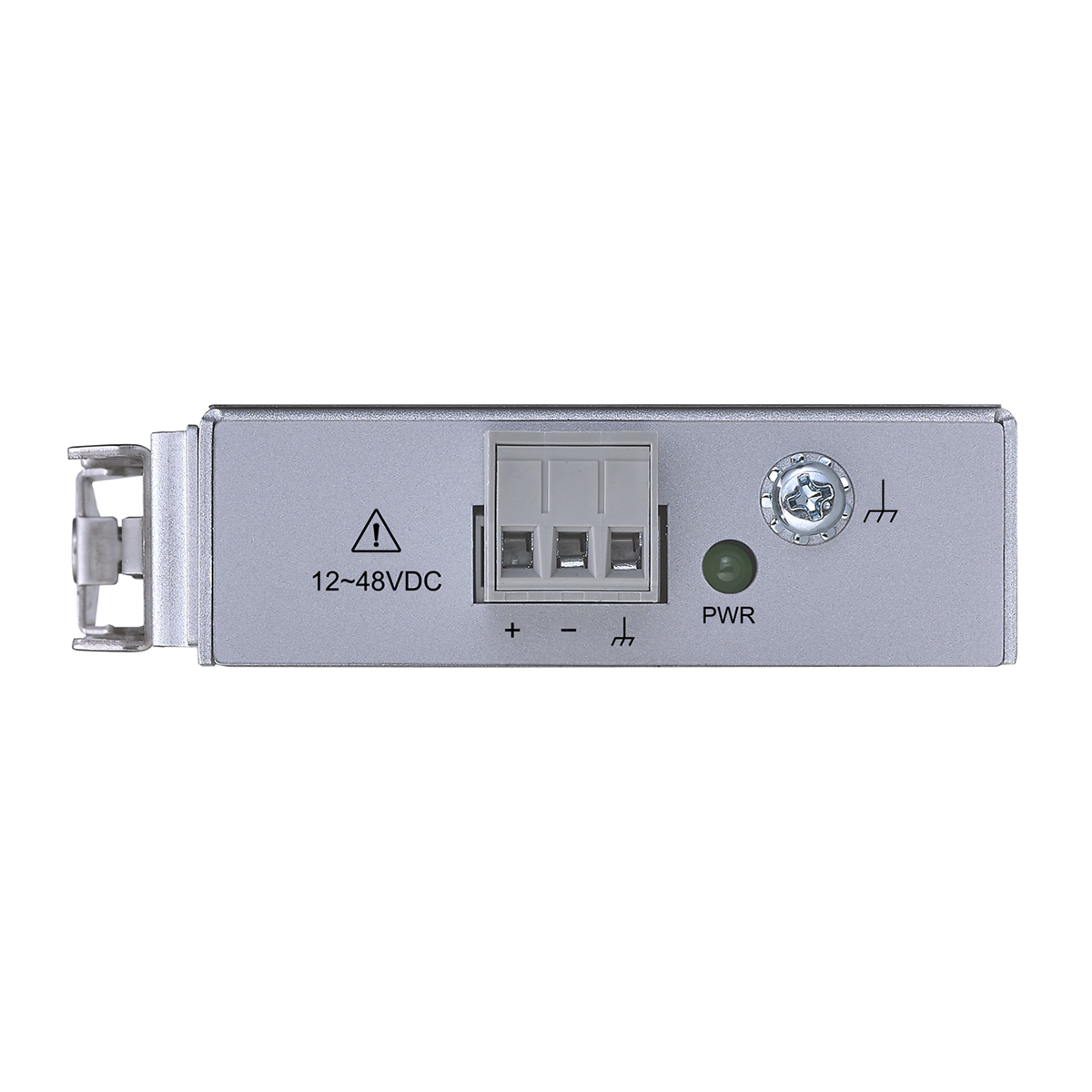

Connection
Terminal block
Power Input Polarity Protection
Present
Current Overload Protection
Present
Power Consumption
3W
Mechanical and Environment
Housing
Aluminum (IP40 Protection)

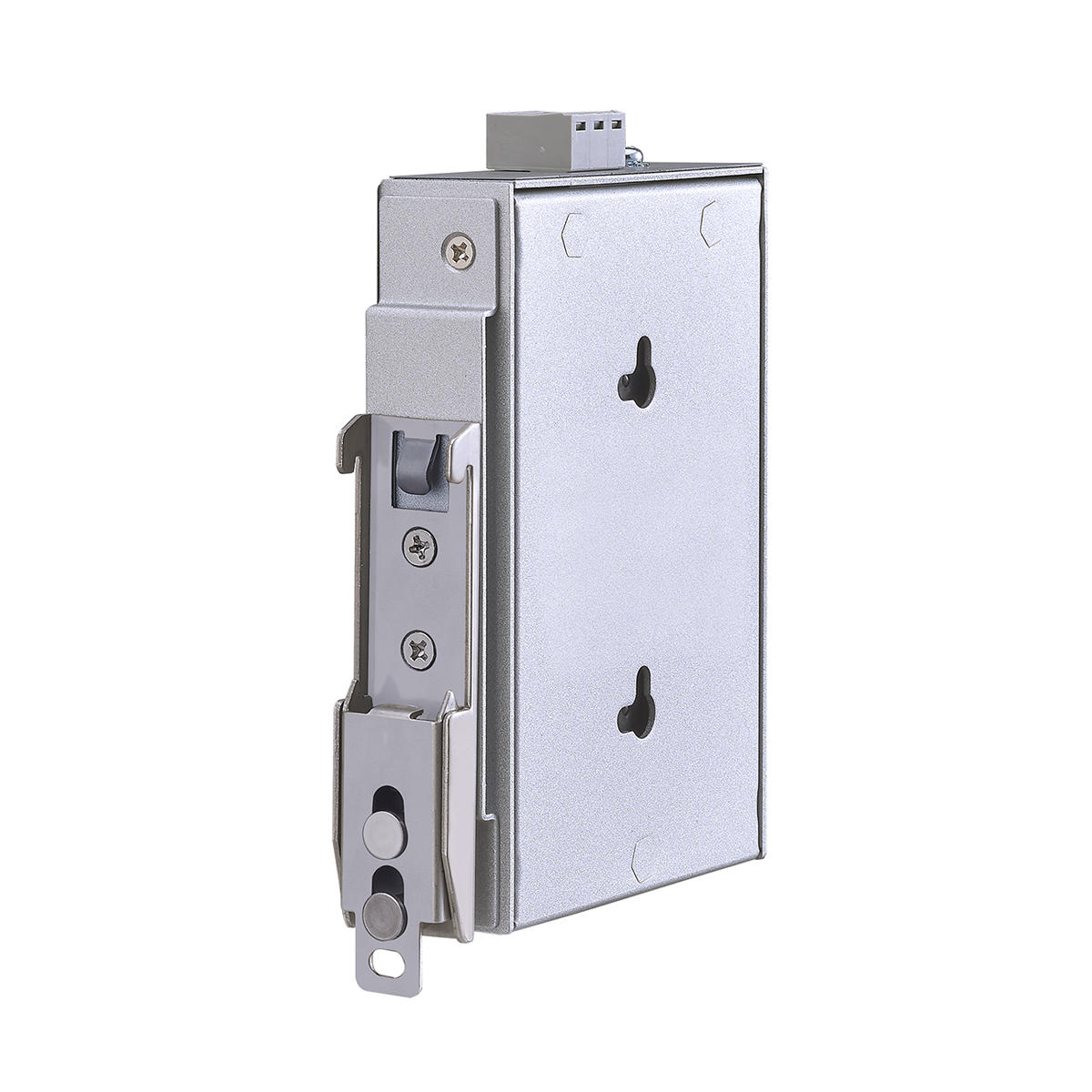

Mounting
DIN-Rail, Wall Mount
Operating Temperature
-40°C~75°C (-40°F~167°F)
Storage Temperature
-40°C~85°C (-40°F~185°F)
Operating Humidity
5 to 95% RH (non-condensing)
Storage Humidity
5 to 95% RH (non-condensing)
Weight
180 g (0.4 lb)
Dimension (WxHxD)
23.6 x 111.5 x 73.8 mm (0.93 x 4.39 x 2.90 in)
Ordering Information
| Model | Description |
|---|---|
| INS-8005A | Unmanaged 5 x 10/100 RJ45 Industrial Switch |
*Specifications subject to change without prior notice.
