INS-8008E is an premium unmanaged 8-port, 10/100 RJ45 downlink industrial switch for very elementary interconnection between devices with Premium features. It offers auto-negotiation on all its ports to aggregate devices easily in industrial Ethernet applications. The switch offers in-built traffic optimization to have stable performance and prevents packet loss by transporting VLAN packets without modifying them. Additionally, it prioritizes data with industrial QoS priority for Ethernet/IP, PROFINET, and GOOSE packets.
This switch is built with industrial grade components, enclosed in an IP40 metal case to protect the device from tools and hazards. Designed to withstand vibration, shock, free fall, interference, and temperatures ranging from -40℃~75℃ (-40°F~167°F) it suits extreme industrial environments.
Protected Against Unpredictable and Harsh Environment
Engineered to withstand electrostatic discharge, power surge, over-voltage, over-current, high-vibration, and reverse polarity in the event of an accident.
Simple Installation and Compact Size
Auto MDI/MDI-X (medium dependent interface / MDI crossover) on all ports for simple connection to other switches and hubs.
Broadcast Storm
Monitors traffic storm levels of the incoming broadcast packet rate and limits over an interval of time to prevent unnecessary traffic and safeguard performance.
Standards
IEEE 802.3
10BASE-T
IEEE 802.3u
100BASE-TX
IEEE 802.3
Nway Auto-negotiation
IEEE 802.3x
Flow Control
IEEE802.1p
Class of Service
Interface
Ports
8 x 10/100BASE-TX (RJ45)

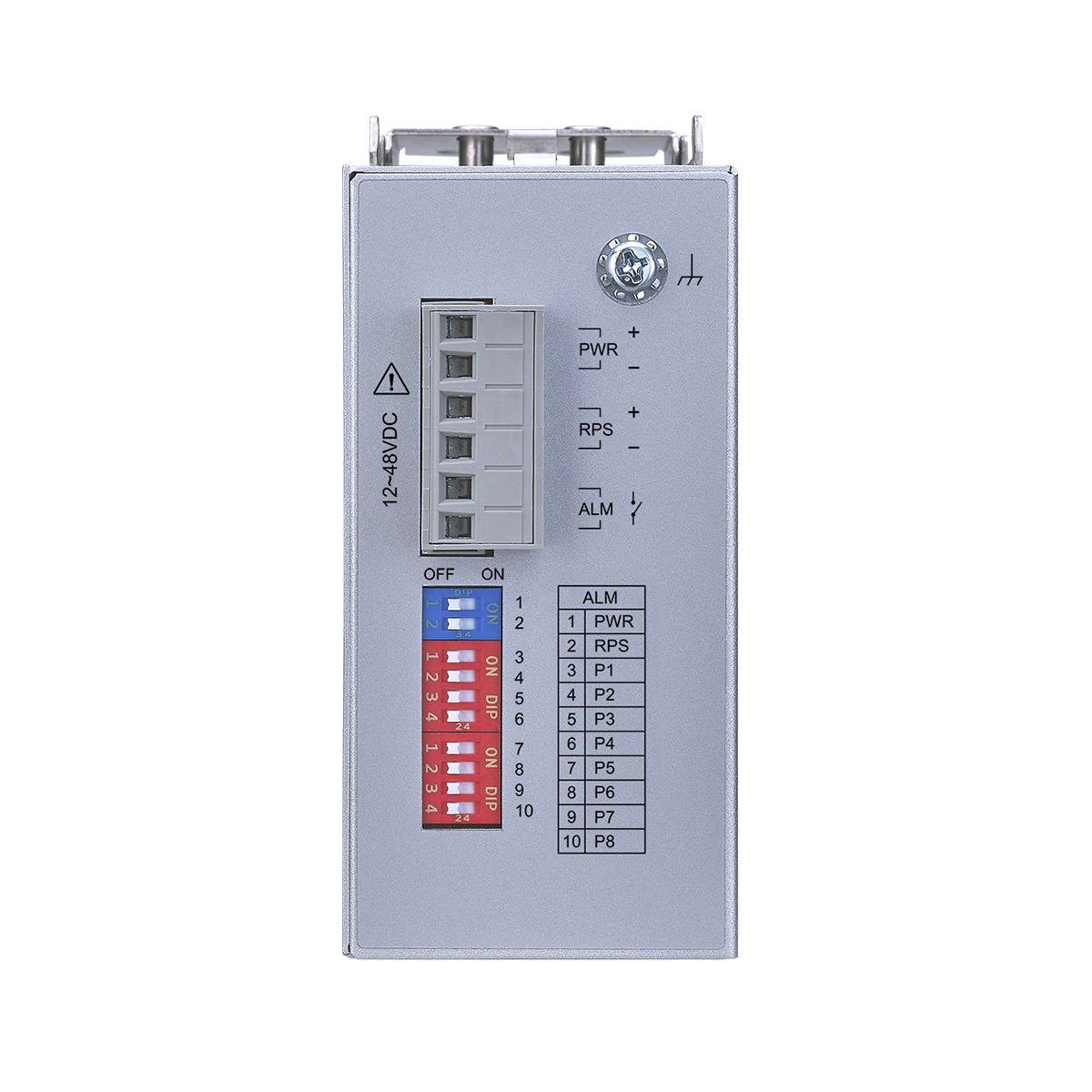

DIP Switch
PWR, RPS, P1 ~ P8
LED Indicator
PWR, RPS, ALM, 100, LNK/ACT
Power
Input Voltage
Primary input 12~48VDC
Redundant input 12~48VDC
Connector
Terminal Block
Max Power Consumption
5W
Alarm Relay
One relay output, 1A @ 24V DC
Reverse Polarity Protection
Present
Over Load Protection
Present
Ordering Information
| Model | Description |
|---|---|
| INS-8008E | Premium Unmanaged 8 x 10/100 RJ45 Industrial Switch |
*Specifications subject to change without prior notice.
