INS-8005M is a 5-port, 10/100 RJ45 downlink unmanaged industrial switch for very elementary interconnection between devices. It offers auto-negotiation on all its ports to aggregate devices easily in industrial ethernet applications. The switch offers in-built traffic optimization to have stable performance.
This switch is built with industrial-grade components, enclosed in IP30 metal to protect the device from tools and hazards. This device is Certified DNV GL approved for safe use in marine applications. Designed to withstand vibration, shock, free fall, interference, and temperatures ranging from -40℃~75℃ (-40°F~167°F) it suits extreme industrial environments.
Robust Electrical and Electromagnetic Safeguard
Engineered to withstand EMI (electromagnetic interference), ESD (Electrostatic discharge), power surge, over voltage, over current, and reverse polarity.
Simple Installation
Auto-MDI/MDIX (medium dependent interface / MDI crossover) on all ports for easy connection with other switches and hubs.
Standards
IEEE 802.3
10BASE-T
IEEE 802.3u
100BASE-TX
IEEE 802.3
Nway Auto-negotiation
IEEE 802.3x
Flow Control
Interface
Ports
5 x 10/100BASE-TX (RJ45)
LED Panel
PWR, 100, LNK/ACT

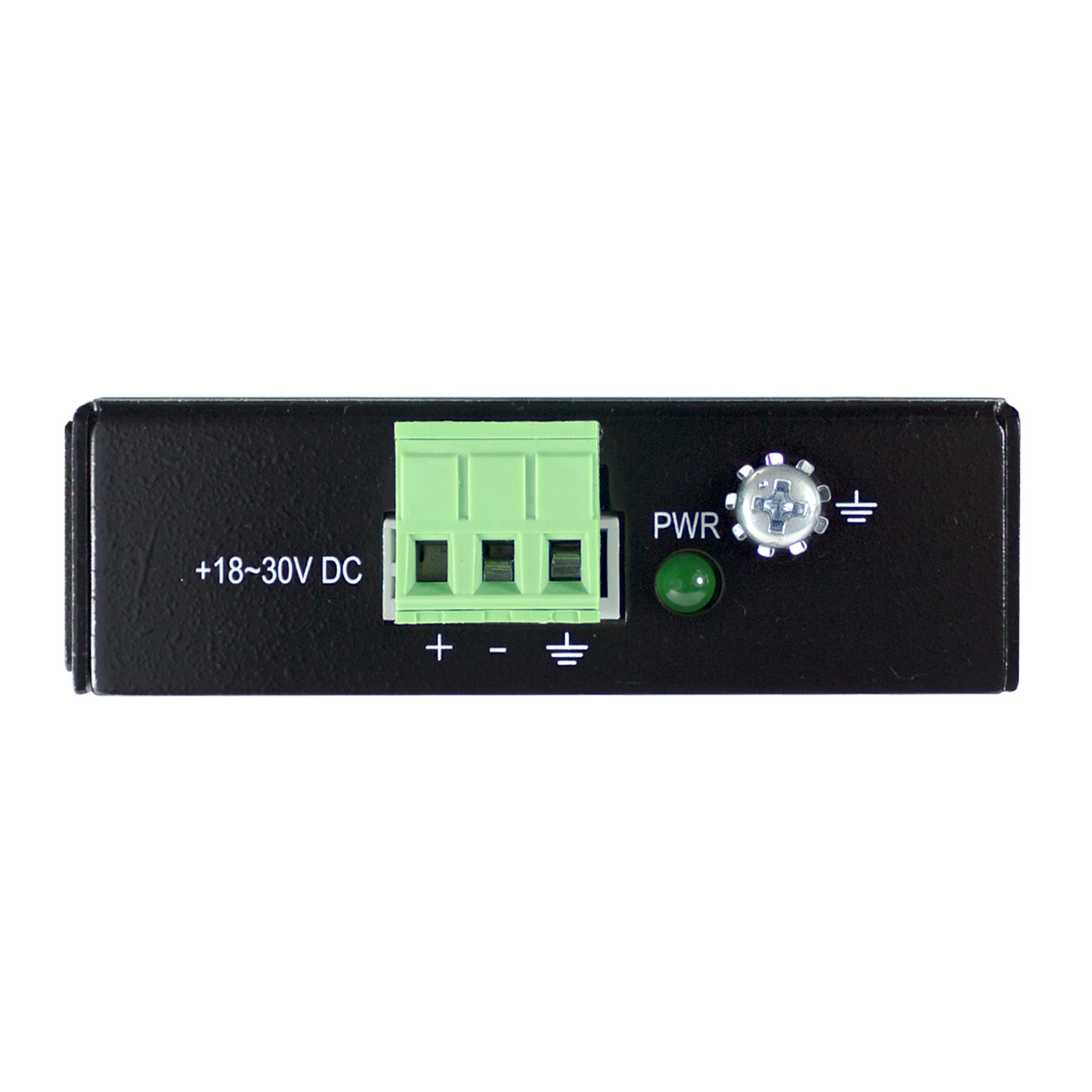

Power
Input Voltage
18~30V DC
Connection
Terminal Block
Power Consumption
3W
Surge Protection
6KV
ESD Protection
8KV
Mechanical and Environment
Housing
Aluminum Case (IP30 protection)

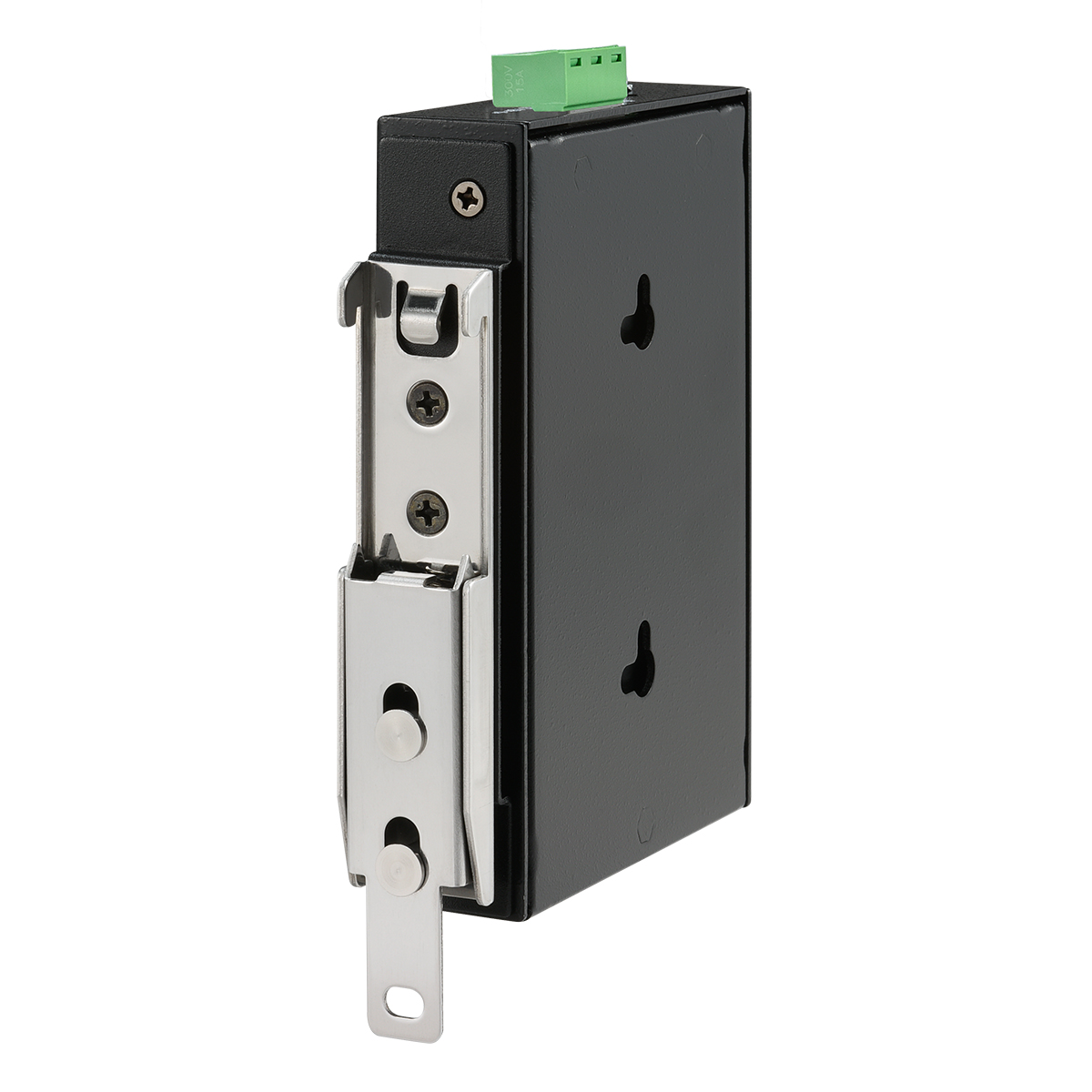

Mounting
DIN-Rail, Wall Mount
Operating Temperature
-40°C~75°C (-40°F~167°F)
Storage Temperature
-40°C to 85°C (-40°F~185°F)
Operating Humidity
5 to 95% RH (non-condensing)
Storage Humidity
5 to 95% RH (non-condensing)
Weight
145 g (0.3 lb)
Dimension (WxHxD)
23.6 x 111.5 x 73.8 mm (0.93 x 4.39 x 2.90 in)
Ordering Information
| Model | Description |
|---|---|
| INS-8005M | Unmanaged 5 x 10/100 RJ45 Industrial Switch, DNV GL Marine Approval, -40°C~75°C |
*Specifications subject to change without prior notice.
